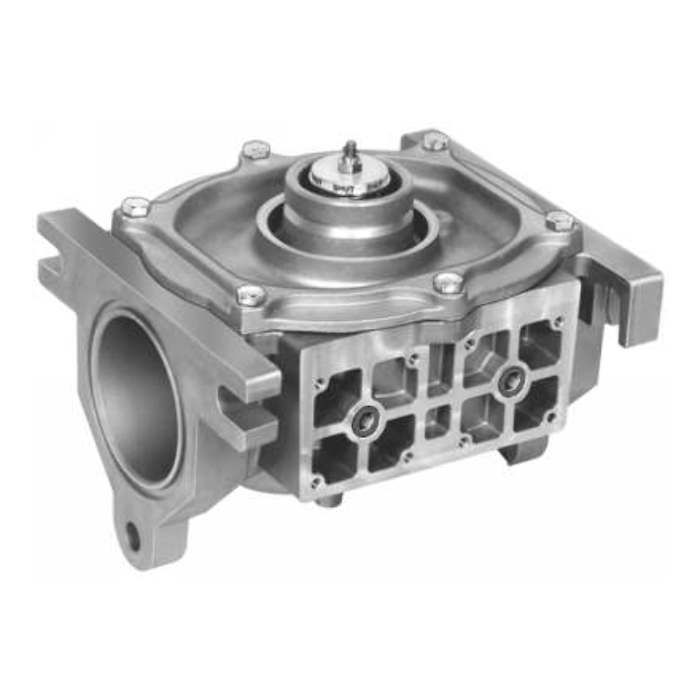

Gas Valve, Small Body Valve Train
done_outline8888 in stock
addShow Locations removeHide Locations
Small Body High Pressure Integrated Valve With On/Off Safety Shutoff With Double Seal, 3/4 in., 1 in., 1-1/4 in, Or 2 in. Pipe Sizes, 5 psi Maximum Operating Pressure, Used With V9055, V4055 And V4062.


Includes Three 1/4 in. To 18 NPT Upstream And Two 1/4 in. To 18 NPT Downstream Taps
Mount Directly In Gas Supply Line
Seven Pipe Adapter Sizes From 3/4 in. To 3 in. Have NPT Or BSP Threaded Connections
CE Version Provides An Additional Downstream Tap And Plug
Yellow SHUT Indicator Attached To The Valve Stem Provides An Indication Of The Valve Closed Position
For On/Off Service
Have A Double Seal And Are Used With V4055D,E Actuators To Provide Proof-Of-Closure Switch And Valve Seal Over-Travel Interlock
For High Pressure Applications

Technical Details

Type Of Gas
Natural Or LP
665 cf/hr To 3620 cf/hr
Operating Conditions
-40 F To 150 F (-40 C To 66 C)
