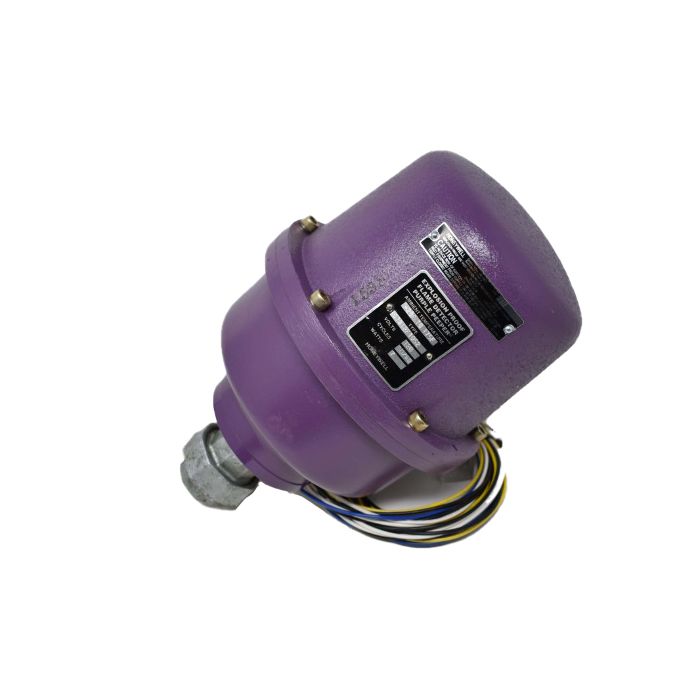

Features

Designed For Use With 7800 Series Controls With The R7851C Flame Amplifier

Oscillating Shutter Interrupts UV Radiation Reaching The UV Sensor To Provide The Solid Stage UV Sensor Checking Function

Can Be Mounted Horizontally, Vertically Or At Any Angle In Between

The Detector Requires Faceplate Alignment And Has Integral Locating Reference Points To Assure Proper Operation Of The Shutter Mechanism

Incorporates UV Sensor Tube Checking Feature; Used With R7851C1008 Dynamic Self-Check Amplifiers

Protective Heat Block Into Mounting Flange

Detector Cannot Be Wired In Parallel
