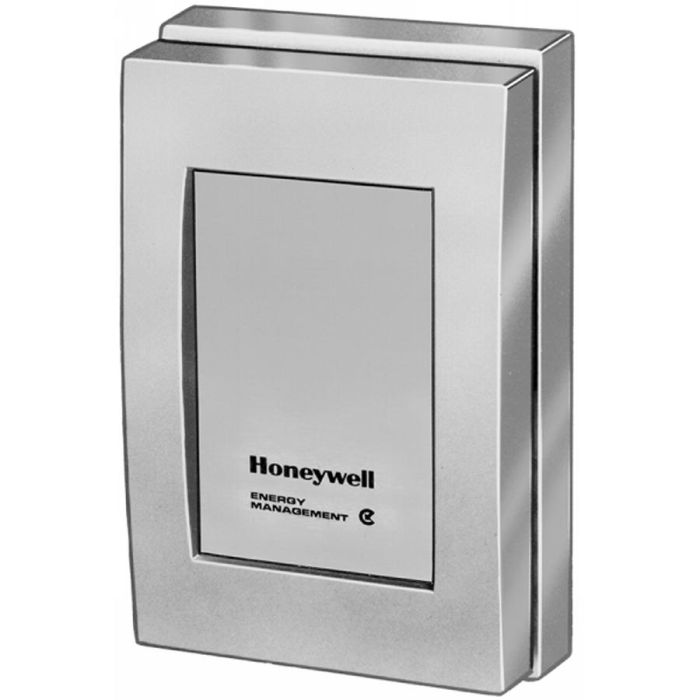

T7067A1008/U
Discontinued
by
To Be Used With The W973 Logic Panel To Control The Operation Of Single Zone Packaged Air Conditioning Equipment, Integral Temperature Sensor Without Thermometer, Voltage Ramp Output.
Features
Separate Heat And Cool Adjustable Set Point Levers Provide Adjustable Deadband From 3 F To 30 F (2 C To 17 C)
Separate 1-16 VDC Voltage Ramps Provide Independent Heating And Cooling Signals To W973 Single Zone Logic Panel
Two Light-Emitting Diodes (LEDs) Under T7067 Cover For System Checkout
C7046A Discharge Air Sensor Provides Temperature Anticipation
One T7067 Can Control Up To 6 W973 Panels In Parallel
Mount On Standard 2 x 4 in. Vertical Outlet Box Or On A Non-Conductive Flat Surface
All Models Include Wiring Plate And Locking Cover
W973 Single Zone
Technical Details
Setpoint Temp Range:
55 F to 85 F
Dimensions:
4 5/8 in. high x 2 13/16 in. wide x 1 1/4 in. deep
Shipping Temperature:
-40 F to +150 F
