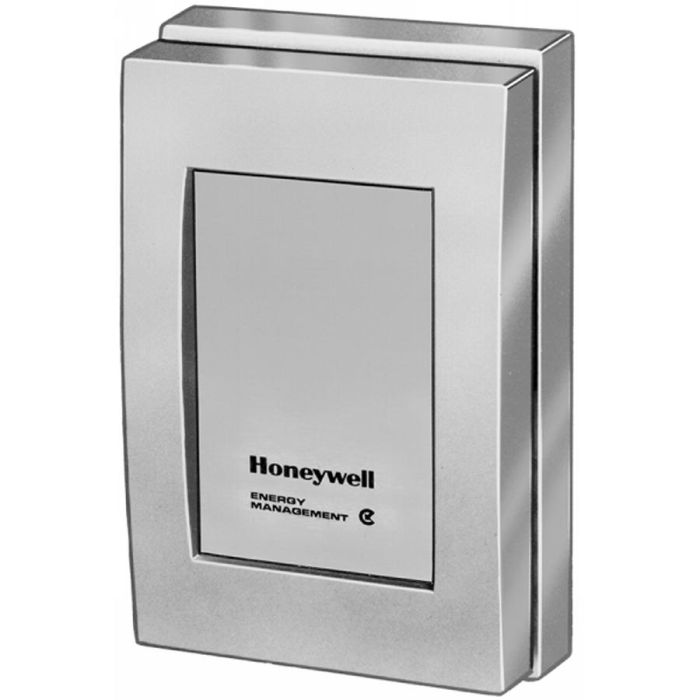

T7080A1019/U
Discontinued
by
This item has been discontinued by the manufacturer. For replacement options, please contact your local Cochrane Supply branch.
Features
Separate Heat And Cool Adjustable Set Point Levers Provide Adjustable Deadband From 3 F To 30 F (2 C To 17 C)
Single 2 To 22 VDC Voltage Ramps Provide Heating And Cooling Signals To W7080 Load Analyzer.
Outputs Constant 12 VDC When Sensed Temperature Is Within Deadband Range
Ramp Output Decreases On Call For Heat, Increases On Call For Cooling
Mount On Standard 2 x 4 in. Vertical Outlet Box Or On A Non-Conductive Flat Surface
Operates On 24 VDC Supplied By W7080A Load Analyzer
