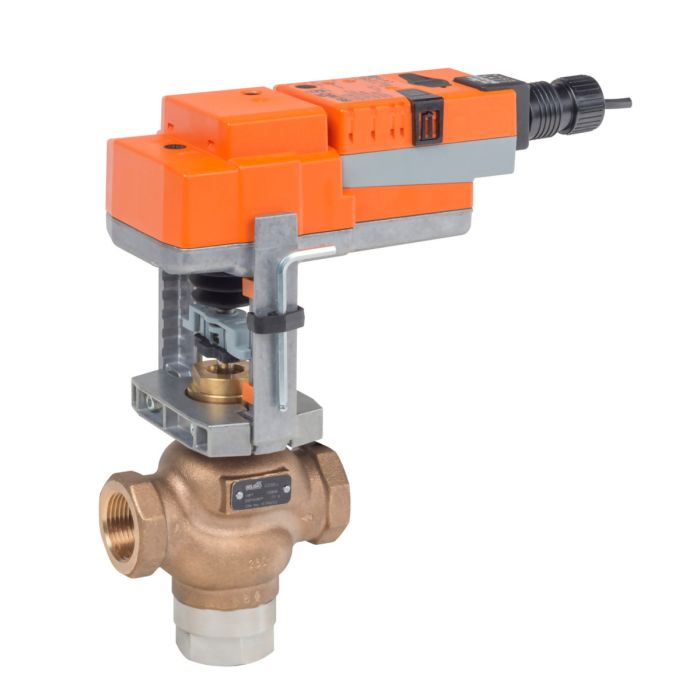

G250S-N+LVKX24-3

Globe Valve Assembly, 2 Way, 2 in.

done_outline8888 in stock

addShow Locations removeHide Locations

NPT, 40 Cv, Bronze Body, Stainless Steel Seat And Stem, Direct Coupled Actuator, 115 ft.-lb, On/Off, Floating Point, Electronic Fail-Safe, 24 VAC.

Features

This Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils

Suitable For Use In Hydronic Systems With Variable Flow

Technical Details

Service

Chilled Or Hot Water, Up To 60% Glycol, Steam

Flow Characteristic

Modified Equal Percentage

Operating Conditions

20 F To 388 F (-7 C To 170 C)

Power Consumption

2.5 W Running, 1.5 W Holding

Operating Conditions

-22 F To 122 F (-30 C To 50 C)

Electrical Connection

3 ft. 18 GA Plenum Rated Cable With 1/2 in. Conduit Connector Protected NEMA 2

Housing

NEMA 2, IP54, UL Enclosure Type 2
