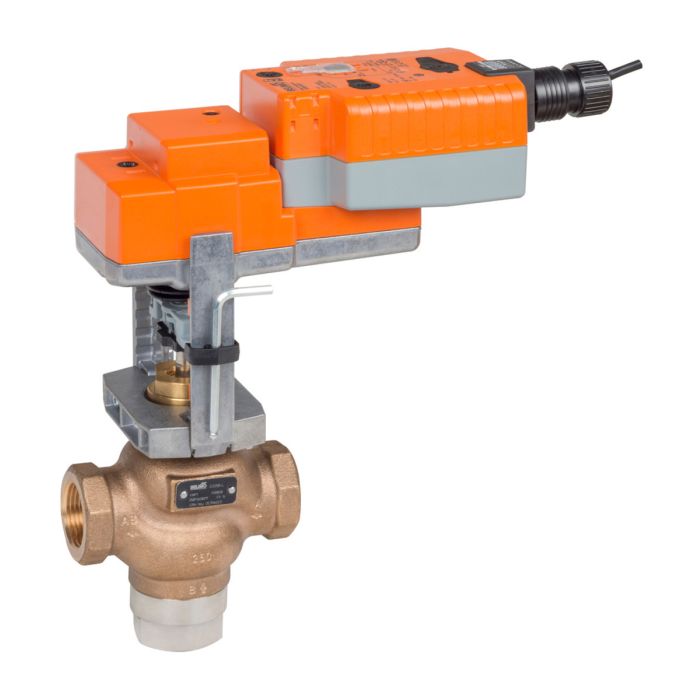

G325B-L+SVKB24-3
Globe Valve Assembly, 3 Way, 1 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
NPT, 14 Cv, Bronze Body, Bronze Seat, Stainless Steel Stem, Direct Coupled Actuator, 340 ft.-lb, On/Off, Floating Point, Electronic Fail-Safe, 24 VAC.
Features
This Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
Suitable For Use In Hydronic Systems With Variable Flow
Technical Details
Service
Chilled Or Hot Water, Up To 60% Glycol
Flow Characteristic
Modified Equal Percentage, Linear B To AB
Operating Conditions
20 F To 280 F (-7 C To 138 C)
Power Consumption
3 W Running, 2 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
3 ft. 18 GA Plenum Rated Cable With 1/2 in. Conduit Connector Protected NEMA 2/IP54
Housing
NEMA 2, IP54, UL Enclosure Type 2
