G765D+EVX24-MFT

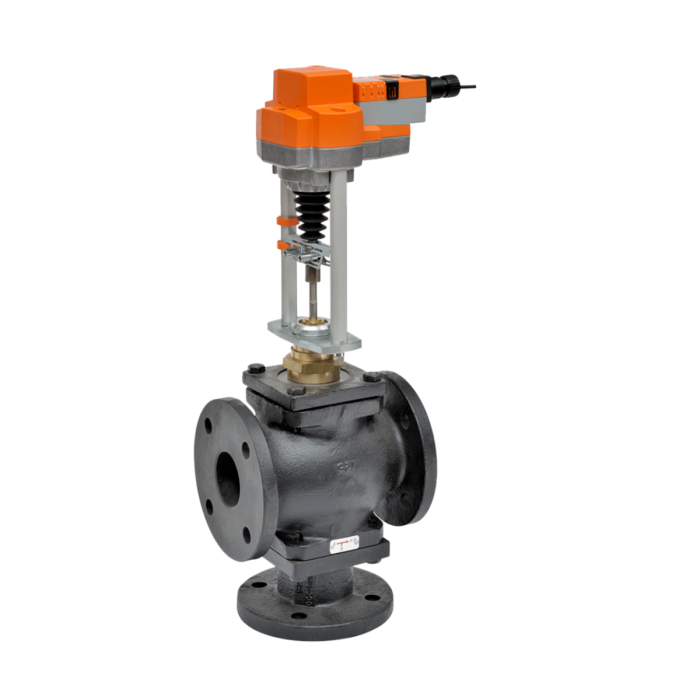

Globe Valve Assembly, 3 Way, 2 1/2 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Flanged, 68 Cv, Cast Iron Body, Stainless Steel Seat And Stem, Direct Coupled Actuator, 560 ft.-lb Linear Force, Modulating, Non-Spring Return, 24 VAC, Multi-Function Technology.
Features
Typically Used In Large Air Handling Units On Heating Or Cooling Coils
Suitable For Use In Hydronic Systems With Variable Flow
To Be Used In Diverting Applications Only
Technical Details
Service
Chilled Or Hot Water, Up To 60% Glycol
Flow Characteristic
Linear
Operating Conditions
32 F To 300 F (0 C To 149 C)
Power Consumption
5 W Running, 1.5 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connections
3 ft. 18 GA Plenum Rated Cable With 1/2 in. Conduit Connector Protected NEMA 2
Housing
NEMA 2, IP54, UL Enclosure Type 2
