A/CP-I-2.5-BB

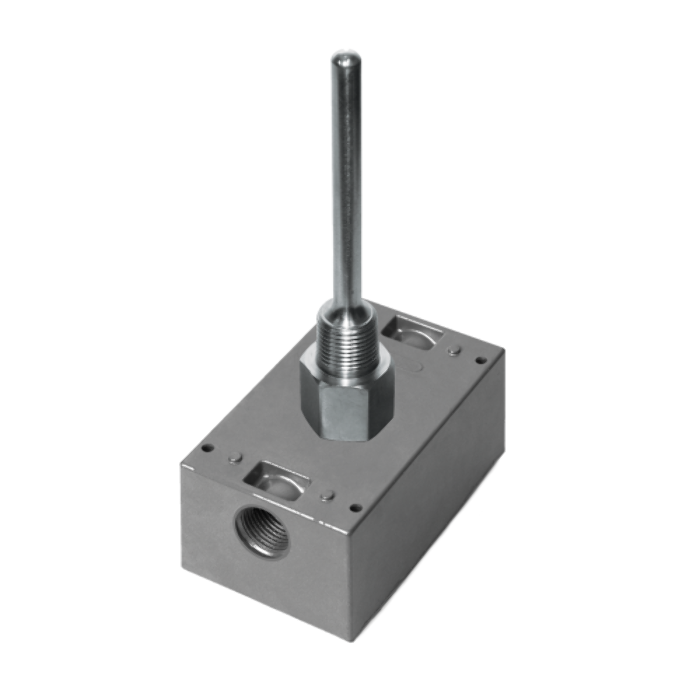

Immersion Temperature Sensor, 2.5 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
With Welded Thermowell, 10K ohm Nominal Type II Thermistor Non-Linear NTC, 2 Wire, 1 Sensing Point, 2.5 in. Probe, -40 F To 302 F Operating Temperature Range, Aluminum NEMA 3R Enclosure.
Features
Chilled Water Systems, Hot Water Systems, Boilers, Pumps, Compressor, Chillers Applications
Features A 1/4 in. Diameter Stainless Steel Probe With Two, 14 in. 22 AWG Etched Teflon Colored Lead Wires To Differentiate The Different Sensor Types
Manufactured Using ACI’s Proven Double Encapsulation Process To Eliminate The Effects Of Moisture And To Increase The Response Times Using Our High Quality, Thermally Conductive Epoxy
Two Wire, Welded Well
Technical Details
Configuration
Immersion
Enclosure
Bell Box, NEMA 3R
Probe Lead
2-4
Mounting
Well Mount
Temperature Sensor Type
10K Type II
Sensors Application
Temperature
