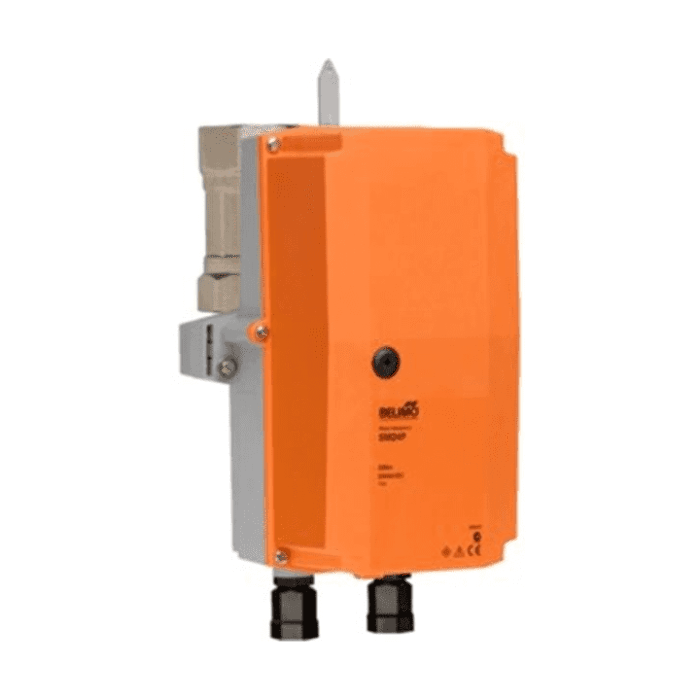

B238+ARX24-SR-T N4
CCV Assembly 2 Way, 1 1/2 in. NPT, 19 Cv
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Characterized Control Valve, Forged Brass, Nickel Plated Body, Stainless Steel Ball And Stem, Direct Coupled, Non Spring Return, 180 in-lb Torque Rating, 24 VAC, On/Off/Floating, Modulating, Programmable Control Inputs And Feedback Signals.
Features
Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
Valve Is Suitable In Use In A Hydronic System With Variable Or Constant Flow
Ball Valve Design Offers Self-Cleaning And Zero Leakage
Rated For Water Temperatures Up To 250 F
Technical Details
Service
Chilled, Hot Water, Up To 60% Glycol
Flow Characteristic
Equal Percentage
Operating Conditions
0 F To 250 F (-18 C To 120 C)
Close-Off Pressure
200 psi
Power Consumption
2.5 W Running, 0.4 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
Terminal Blocks
Housing
NEMA 4X, IP66/67, UL Enclosure Type 4X
