B251+AFRBUP-S

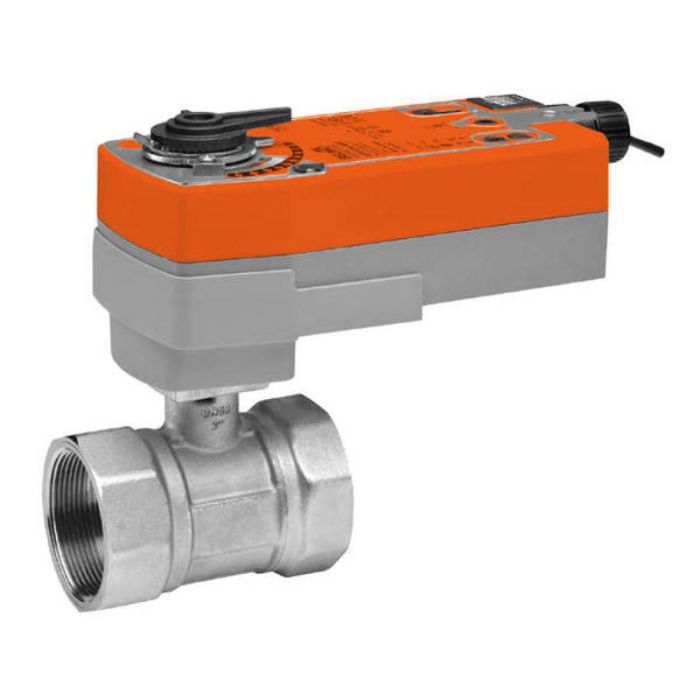

CCV Assembly 2 Way, 2 in. NPT, 65 Cv
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Characterized Control Valve, Nickel Plated Brass Body, Stainless Steel Ball And Stem, Direct Coupled Actuator, 180 in-lb, On/Off, Spring Return, 24 To 240 VAC.
Technical Details
Service
Chilled Or Hot Water, Up To 60% Glycol
Flow Characteristic
Equal Percentage
Operating Conditions
0 F To 250 F (-18 C To 120 C)
Close-Off Pressure
200 psi
Power Consumption
7 W Running, 3.5 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
Two 3 ft. 18 GA Appliance Cables With 1/2 in. Conduit Connectors
Housing
NEMA 2, IP54, UL Enclosure Type 2
Auxiliary Switch
2 x SPDT
