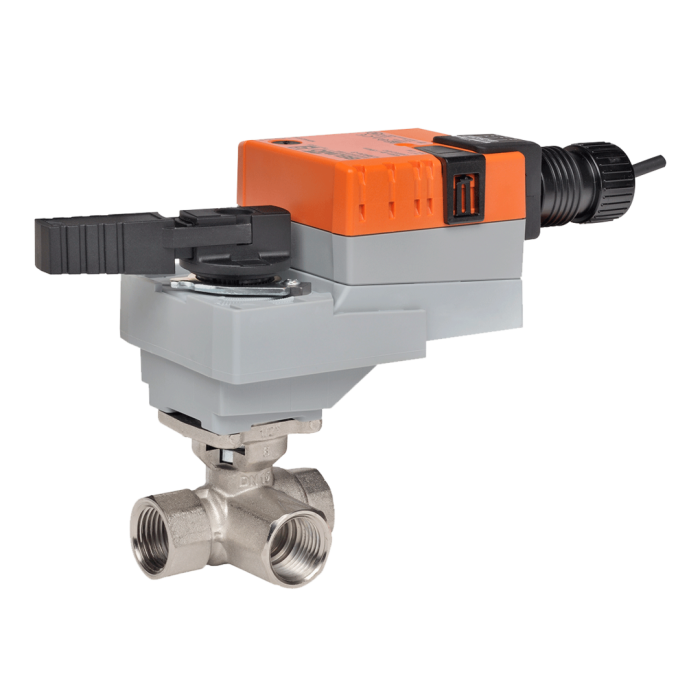

B323+LRX24-SR
CCV Assembly 3 Way, 1 in. NPT, 10 Cv
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Characterized Control Valve, Nickel Plated Brass Body, Stainless Steel Ball And Stem, Direct Coupled, Non Spring Return, 45 in-lb Torque Rating, 24 VAC, Modulating, 2 To 10 VDC, 4 To 20 mA.
Technical Details
Service
Chilled Or Hot Water, Up To 60% Glycol
Flow Characteristic
A-Port Equal Percentage, B-Port Modified For Constant Common Port Flow
Operating Conditions
0 F To 250 F (-18 C To 120 C)
Close-Off Pressure
200 psi
Power Consumption
1.5 W Running, 0.2 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
18 GA Plenum Rated Cable With 1/2 in. Conduit Connector Protected NEMA 2, 3 ft. 10 ft. and 16 ft.
Housing
NEMA 2, IP42, UL Enclosure Type 2
