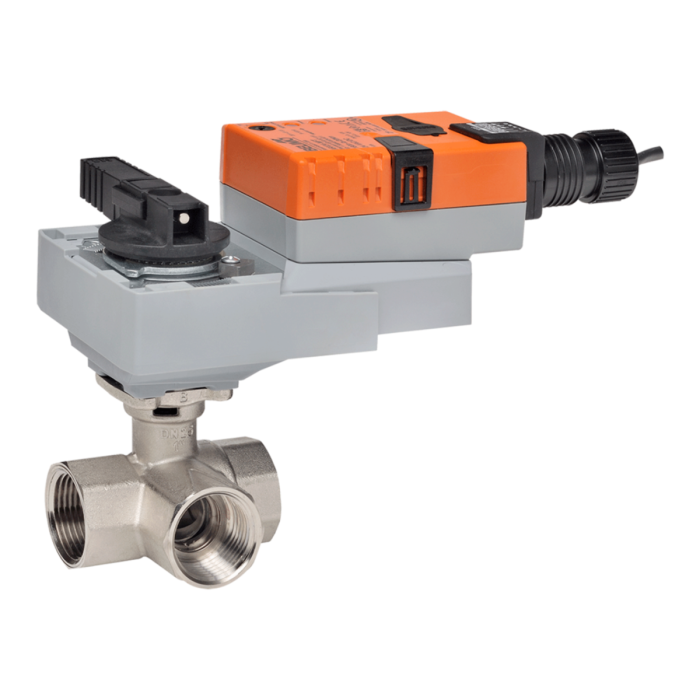

B340+ARX24-MFT
CCV Assembly 3 Way, 1-1/2 in. NPT, 37 Cv
by
done_outline8888 in stock
addShow Locations
removeHide Locations
NPT, Characterized Control Valve, Forged Brass, Nickel Plated Brass Body, Stainless Steel Ball And Stem, Direct Coupled Actuator, 1400 in-lb, Modulating, Electronic Fail-Safe, 24 To 240 VAC, NEMA 4X With BACnet.
Features
Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
Valve Is Suitable In Use In A Hydronic System With Variable Flow
Technical Details
Service
Chilled, Hot Water, Up To 60% Glycol
Flow Characteristic
A-Port Equal Percentage, B-Port Modified For Constant Common Port Flow
Operating Conditions
0 F To 250 F (-18 C To 120 C)
Close-Off Pressure
200 psi
Power Consumption
3.5 W Running, 1.3 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
18 GA Plenum Cable With 1/2 in. Conduit Connector, Degree Of Protection NEMA 2/IP54 3 ft. 10 ft. And 16 ft.
Housing
NEMA 2, IP54, UL Enclosure Type 2
