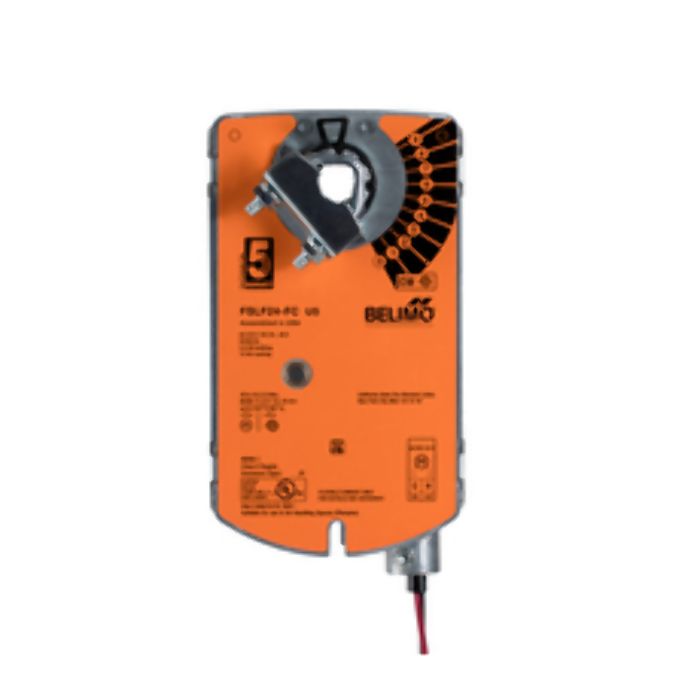

FSLF24-FC US
Fire And Smoke Actuator, 30 in-lb
by
done_outline8888 in stock
addShow Locations
removeHide Locations
On/Off, Spring Return, 350 F For Half An Hour, 15 Second Cycle Time, 24 VAC/DC.
Features
The Spring Return System Provides Constant Torque To The Damper With And Without Power Applied To The Actuator
Provide True Spring Return Operation For Reliable Fail-Safe Application And Positive Close-Off On UL555S Dampers
Technical Details
Power Consumption
15 VA Running, 3.5 VA Holding
Operating Conditions
32 F To 122 F (0 C To 50 C)
Electrical Connection
3 ft. 18 GA, 2 Color Coded Leads
Housing
NEMA 1, IP30
