FSTF120-S US

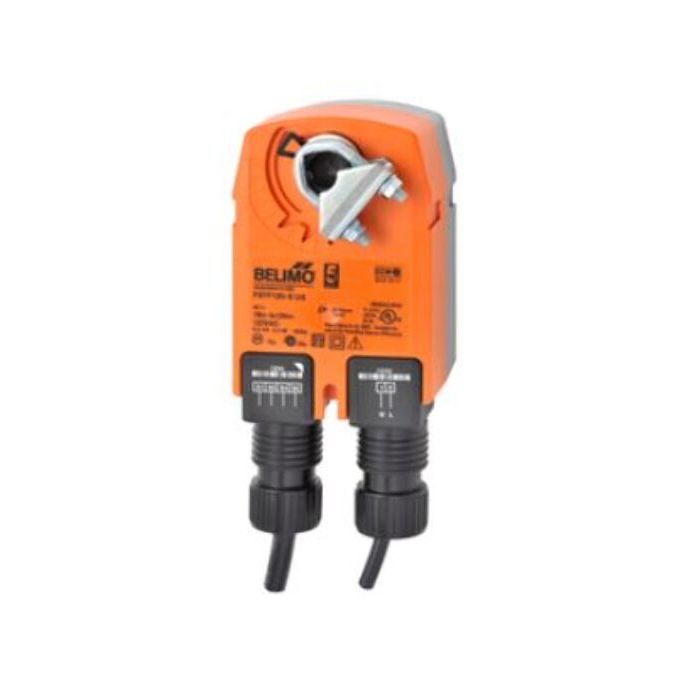

Fire And Smoke Actuator, 18 in-lb
by
done_outline8888 in stock
addShow Locations
removeHide Locations
On/Off, Spring Return Fail-Safe, 120 VAC.
Features
The Spring Return System Provides Constant Torque To The Damper With And Without Power Applied To The Actuator
Provide True Spring Return Operation For Reliable Fail-Safe Application And Positive Close-Off On UL555S Dampers
Technical Details
Power Consumption
2 W Running, 1.5 W Holding
Operating Conditions
32 F To 122 F (0 C To 50 C)
Electrical Connection
Two 3 ft. 18 GA Appliance Cables With 1/2 in. Conduit Connectors
Housing
NEMA 2, IP42, UL Enclosure Type 2
Auxiliary Switch
2 x SPST
