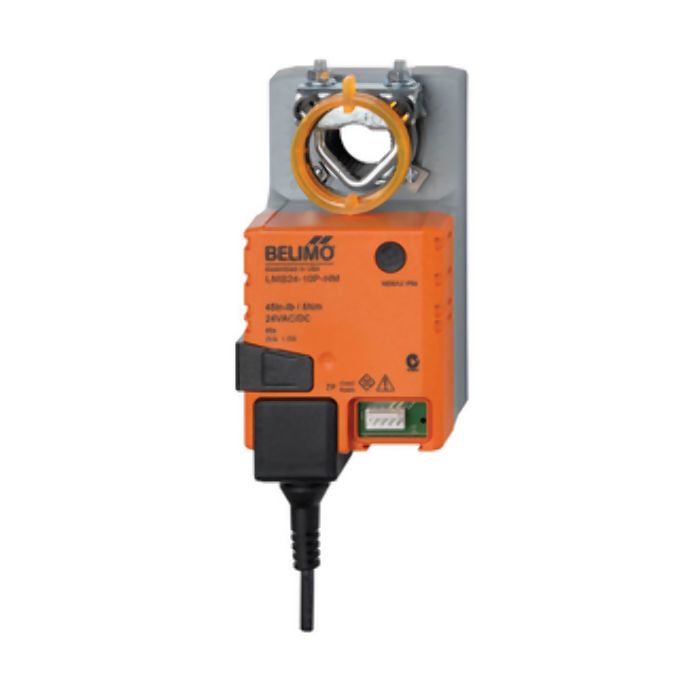

LMB24-10P-HM
Direct Coupled Actuator, 45 in-lb
by
done_outline8888 in stock
addShow Locations
removeHide Locations
On/Off Control, Non-Fail Safe, 24 VAC.
Features
Intended For Retrofit Of Belimo LM244-M And LM24-10P-M Actuators Used In OEM VAV Controllers That Have Reached The End Of Their Service Life
Specifically Designed As A Drop-In Replacement Without Any Altercation To The Existing VAV System
Utilize Belimo Brushless Halomo Motor Technology
When Reaching An End Position, The Actuator Automatically Stops And Reports This Condition To The VAV Controller
Power Consumption Is Reduced When In Holding Mode
Technical Details
Power Consumption
1.5 W Running, 0.2 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
5 Pin Male Molex Connector (Control Signal) 18 GA, 2 Conductor Plenum Rated Cable
Housing
NEMA 1, IP20
