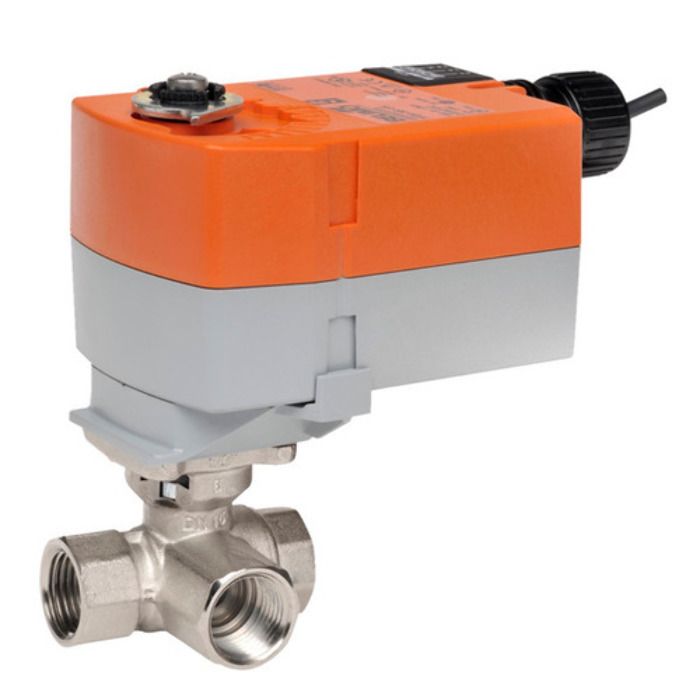

CCV Assembly 3 Way, 3/4 in. NPT, 7.4 Cv
done_outline8888 in stock
addShow Locations removeHide Locations
Characterized Control Valve, Forged Brass, Nickel Plated Brass Body, Chrome Plated Brass Ball, Nickel Plated Brass Stem, Direct Coupled Actuator, 22 in-lb, Modulating, Spring Return, 24 VAC, For 2 To 10 VDC Or 4 To 20 mA Control Signal.


Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
Valve Is Suitable In Use In A Hydronic System With Variable Or Constant Flow
Ball Valve Design Offers Self-Cleaning And Zero Leakage
Rated For Water Temperatures Up To 250 F

Technical Details

Chilled, Hot Water, Up To 60% Glycol
Flow Characteristic
A-Port Equal Percentage, B-Port Modified Linear For Constant Flow
Operating Conditions
0 F To 250 F (-18 C To 120 C)
Close-Off Pressure
200 psi
Power Consumption
2 W Running, 1 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
Two 3 ft. 18 GA Appliance Cable With 1/2 in. Conduit Connector
NEMA 2, IP42, UL Enclosure Type 2
Auxiliary Switch
1 x SPDT
