F6400HD+SY7-120MFT

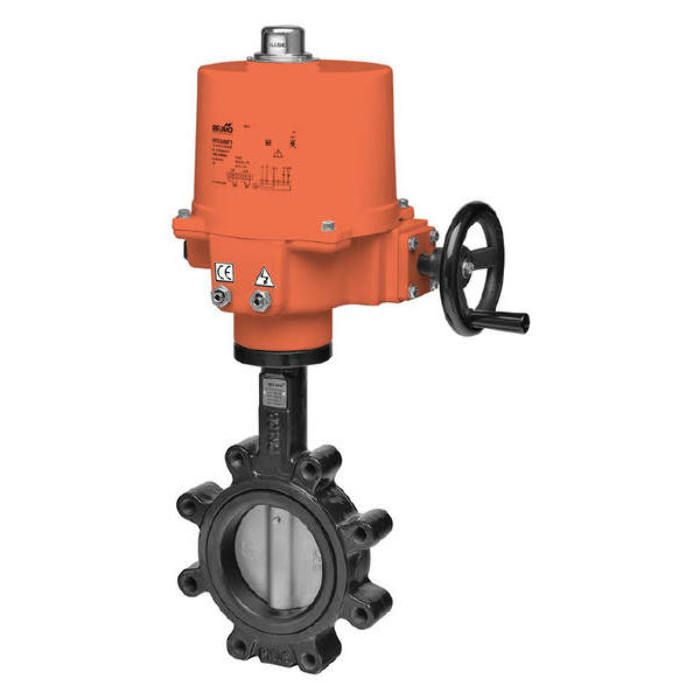

Butterfly Valve Assembly, 2 Way, 16 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Flanged, 90 Degree At 16388 Cv, Ductile Iron Body, Resilient Seat, Stainless Steel Disc, Direct Coupled Actuator, 8900 in-lb, Modulating, Non-Spring Return, 120 VAC, For 2 To 10 VDC Or 4 To 20 mA Control Signal.
Features
Resilient Seat, Grooved And High Performance Butterfly Valves Meet A Wide Range Of Applications
Innovative Seat And Disc Design Provides Zero Percent Leakage Capability At Each Valves Rated Temperature/Pressure While Maintaining A Low Seating Torque
Stainless Steel Disc And Shaft Are Standard For Superior Durability And Long Lasting Operation
Designed With MFT Functionality
Technical Details
Service
Chilled, Hot Water, Up To 60% Glycol
Flow Characteristic
Modified Equal Percentage
Operating Conditions
-22 F To 250 F (-30 C To 120 C)
Close-Off Pressure
150 psi
Current Consumption
2 A
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
Terminal Block
Housing
IP66/67, NEMA 4X, UL Enclosure Type 4X
Auxiliary Switch
2 x SPDT
