G225B-L+LVKB24-3

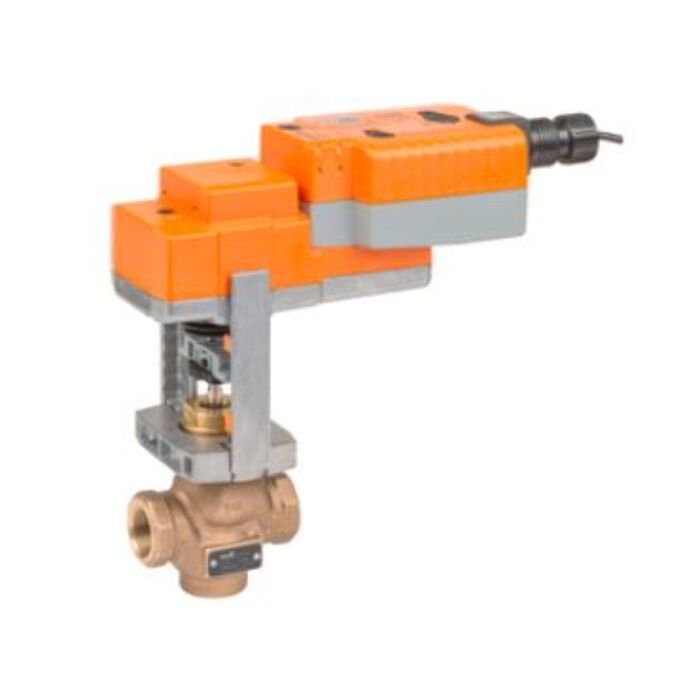

Globe Valve Assembly, 2 Way, 1 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
NPT, 14 Cv, Bronze Body, Bronze Seat, Stainless Steel Stem, Direct Coupled Actuator, 115 ft.-lb Linear Force, On/Off, Floating Point, Electronic Fail-Safe, 24 VAC.
Technical Details
Service
Chilled Or Hot Water, Up To 60% Glycol, Steam
Operating Conditions
20 F To 280 F (-7 C To 138 C)
Power Consumption
2.5 W Running, 1 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
3 ft. 18 GA Plenum Rated Cable With 1/2 in. Conduit Connector Protected NEMA 2
Housing
NEMA 2, IP54, UL Enclosure Type 2
