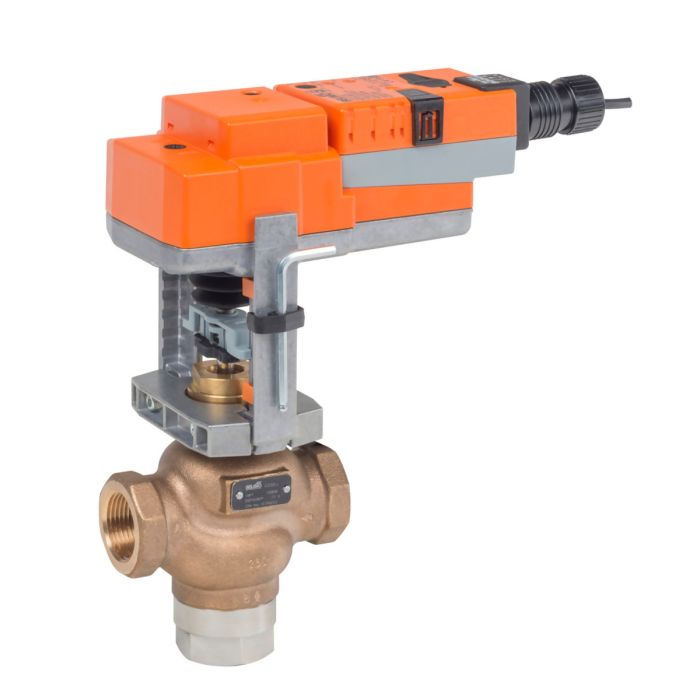

G250S-N+LVX24-SR
Globe Valve Assembly, 2 Way, 2 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
NPT, 40 Cv, Bronze Body, Stainless Steel Seat And Stem, Direct Coupled Actuator, 115 ft-lb, Modulating, Non-Spring Return, Linear, 24 VAC, For 2 To 10 VDC Or 4 To 20 mA.
Features
This Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
Suitable For Use In Hydronic Systems With Variable Flow
Technical Details
Service
Chilled Or Hot Water, Up To 60% Glycol, Steam
Flow Characteristic
Modified Equal Percentage
Operating Conditions
20 F To 388 F (-7 C To 170 C)
Power Consumption
2 W Running, 0.5 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector, Degree Of Protection NEMA 2/IP54
Housing
NEMA 2, IP54, UL Enclosure Type 2
