G6150C+EVB24-SR

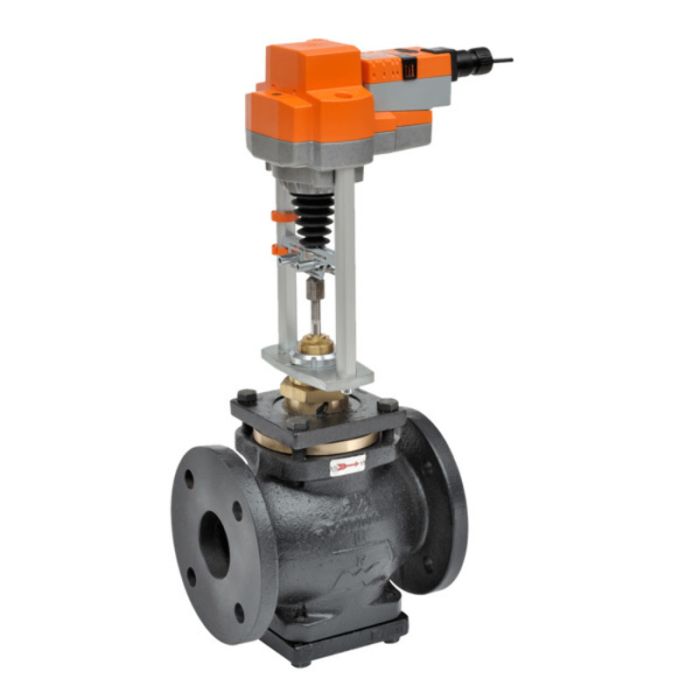

Globe Valve Assembly, 2 Way, 6 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Flanged, 344 Cv, Cast Iron Body, Stainless Steel Seat And Stem, Direct Coupled Actuator, 560 ft.-lb Linear Force, Modulating, Non-Spring Return, 24 VAC, For 2 To 10 VDC, 4 To 20 mA.
Features
Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
Suitable For Use In Hydronic Systems With Variable Flow
Technical Details
Service
Chilled Or Hot Water, Up To 60% Glycol, Steam
Flow Characteristic
Equal Percentage
Operating Conditions
32 F To 338 F (0 C To 138 C)
Power Consumption
5 W Running, 1.5 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connections
3 ft. 18 GA Plenum Rated Cable With 1/2 in. Conduit Connector Protected NEMA 2
Housing
NEMA 2, IP54, UL Enclosure Type 2
