Z3100Q-J+CQKB24-LL

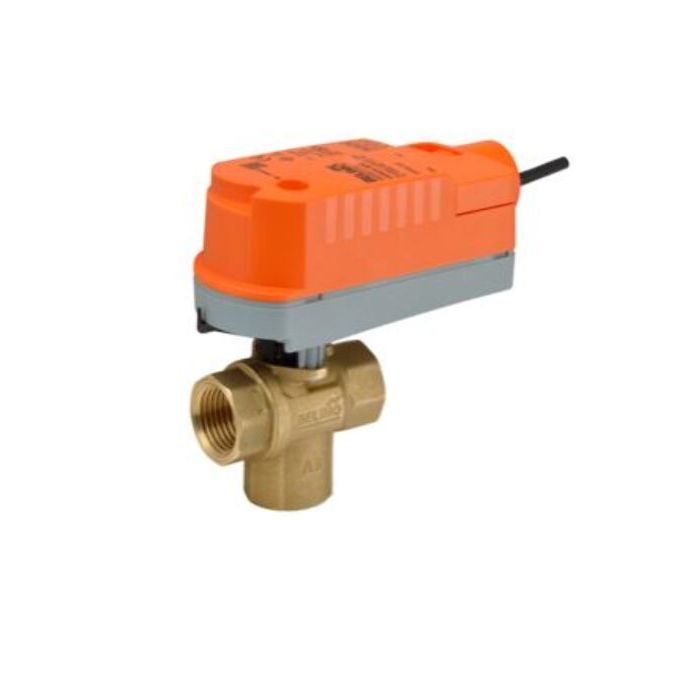

Zonetight Valve Assembly, 3 Way, 1 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Quick Connect Valve, NPT, 4.4 Cv, Forged Brass Body, Chrome Plated Brass Ball And Stem, Direct Coupled Actuator, 12 in-lb, On/Off, Electronic-Fail-Safe, 24 VAC.
Technical Details
Service
Chilled, Hot Water, Up To 60% Glycol
Flow Characteristic
Linear
Operating Conditions
36 F To 212 F (2 C To 100 C)
Close-Off Pressure
40 psi
Power Consumption
2.5 W Running, 0.5 W Holding
Operating Conditions
35 F To 104 F (1.7 C To 40 C)
Electrical Connection
3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
Housing
NEMA 2, IP40
