B220+TR24-SR-T US
CCV Assembly 2 Way, 3/4 in. NPT, 14 Cv
by
done_outline8888 in stock
addShow Locations
removeHide Locations

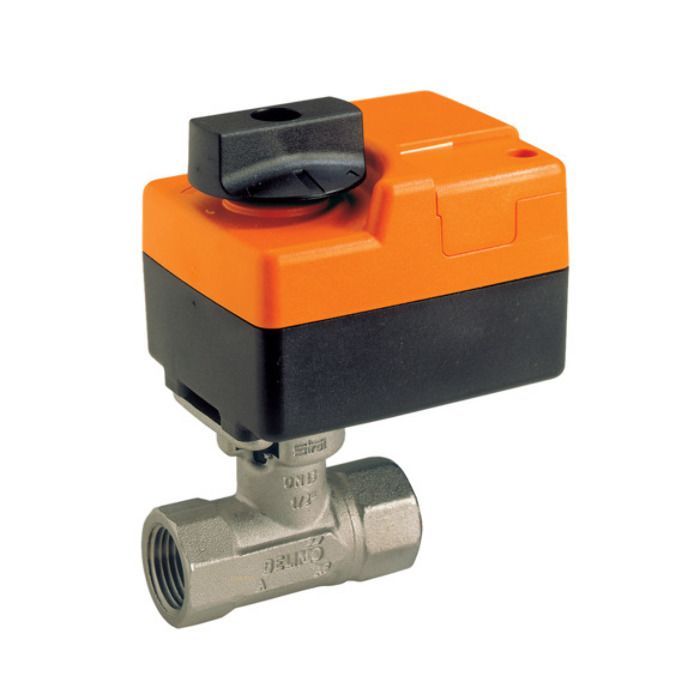

Characterized Control Valve, Forged Brass, Nickel Plated Body, Stainless Steel Ball And Stem, Direct Coupled, Non Spring Return, 18 in-lb Torque Rating, 24 VAC, Modulating, 2 To 10 VDC, 4 To 20 mA.
Features
Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
Valve Is Suitable In Use In A Hydronic System With Variable Flow
Ball Valve Design Offers Self-Cleaning And Zero Leakage
Rated For Water Temperatures Up To 250 F
