F6100VIC+PRBUP-MFT-T

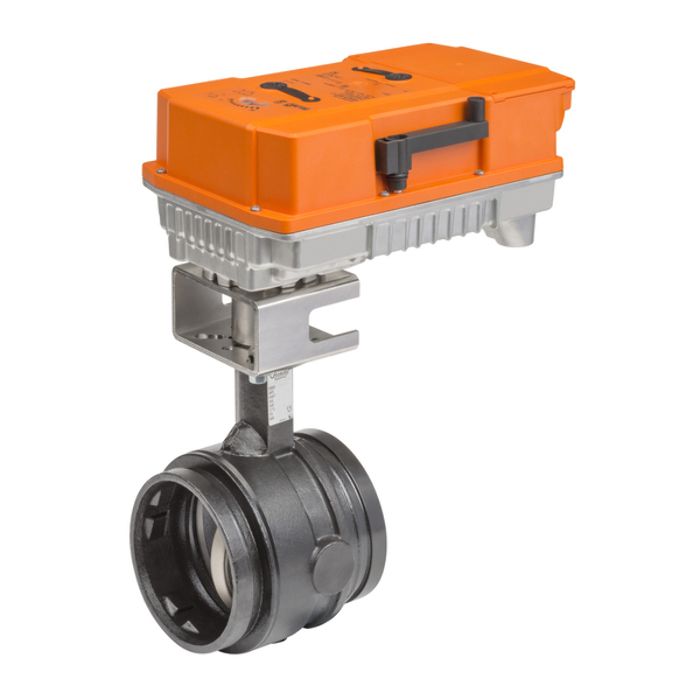

Butterfly Valve Assembly 2 Way, 4 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Grooved, 90 Degree At 820 Cv, Ductile Iron Body, EPDM Seat, Electroless Nickel Coated Ductile Iron Disc, Direct Coupled Actuator, 1400 in-lb, Modulating, Non Fail-Safe, 24 To 240 VAC, NEMA 4X With BACnet.
Features
Resilient Seat, Grooved And High Performance Butterfly Valves Meet A Wide Range Of Applications
Innovative Seat And Disc Design Provides Zero Percent Leakage Capability At Each Valves Rated Temperature/Pressure While Maintaining A Low Seating Torque
Technical Details
Service
Chilled, Hot Water, Up To 60% Glycol, Steam
Flow Characteristic
Modified Equal Percentage
Operating Conditions
-22 F To 250 F (-30 C To 120 C)
Close-Off Pressure
200 psi
Power Consumption
20 W Running, 6 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
Terminal Blocks, (PE) Ground Screw
Housing
IP66/67, NEMA 4X, UL Enclosure Type 4X
Auxiliary Switch
2 x SPDT
