F765HD+GKX24-MFT-X1

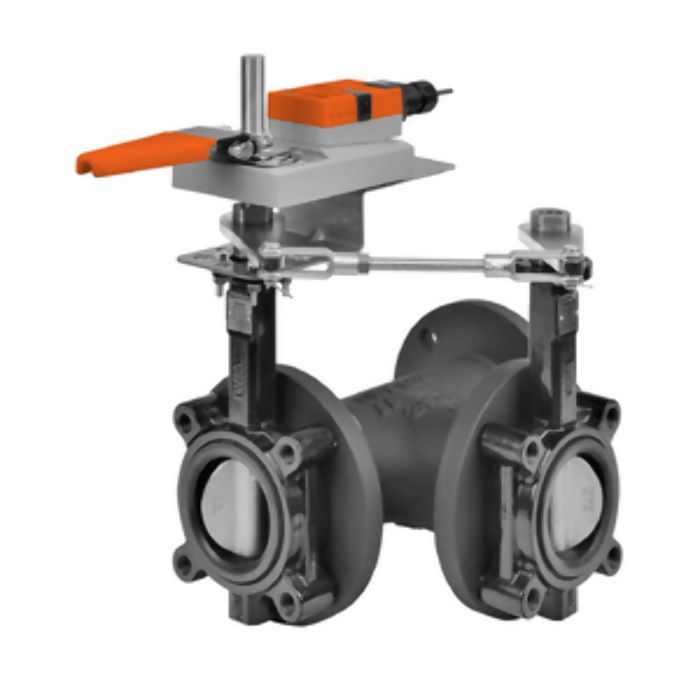

Butterfly Valve Assembly 3 Way 2-1/2 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Flanged, 90 Degree @ 196 Cv, Ductile Iron Body, Resilient Seat, Stainless Steel Disc, Direct Coupled, Electronic Fail Safe, 360 in-lb. Torque Rating, 24 VAC, On/Off/Floating, Modulating, Programmable Control Inputs And Feedback Signals.
Features
Resilient Seat, Grooved And High Performance Butterfly Valves Meet A Wide Range Of Applications
Innovative Seat And Disc Design Provides Zero Percent Leakage Capability At Each Valves Rated Temperature/Pressure While Maintaining A Low Seating Torque
Stainless Steel Disc And Shaft Are Standard For Superior Durability And Long Lasting Operation
Designed With MFT Functionality
Technical Details
Service
Chilled, Hot Water, Up To 60% Glycol
Flow Characteristic
Modified Linear
Operating Conditions
-22 F To 250 F (-30 C To 120 C)
Close-Off Pressure
200 psi
Power Consumption
12 W Running, 3 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
18 GA Plenum Rated Cable With 1/2 in. Conduit Connector, Protected NEMA 2, 3 ft. 10 ft. And 16 ft.
Housing
NEMA 2, IP54, UL Enclosure Type 2
