VK-7313-302-4-11

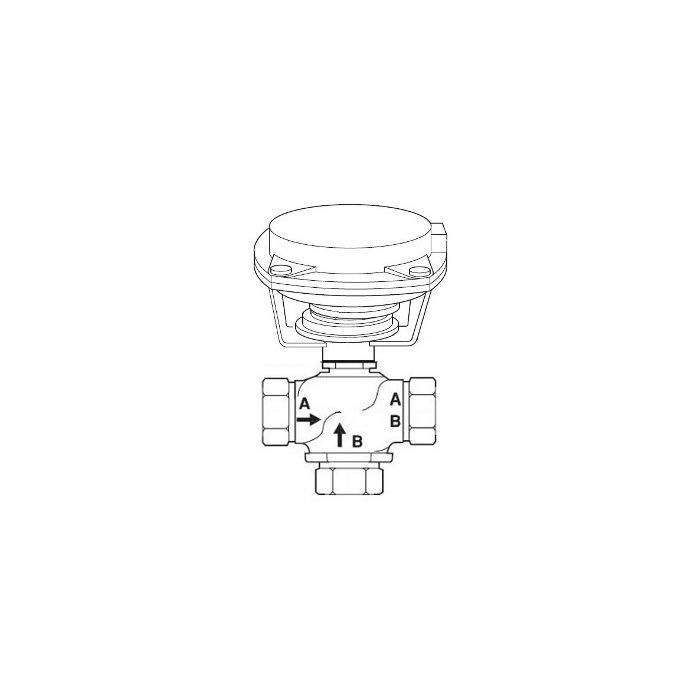

Globe Valve Assembly, 3 Way, 2 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Threaded NPT, 41 Cv, Brass Trim, Pneumatic Valve Actuator, 5 To 10 psi Spring Range, 11 sq in. Diaphragm Area, 1/2 in. Stroke, 1/8 in. FNPT Air Connections.
Features
High Rangeability Provides Fine Accurate Control For More Efficient, Responsive And Comfortable Regulation
Tight Sealing With Ultra-Low Energy Leakage On Shutoff For Energy Conservation With Soft Seating
RoHS Compliant Product Is Environmentally Friendly And Meets ANSI, PED, CRN And Other Standards
Rugged Die Cast Aluminum Housing
Replaceable Beaded Molded Neoprene Diaphragm
Built-In Spring To Retract Output Shaft On Loss Of Air Pressure
Adjustable Start Point
Technical Details
Service
Glycol 25 To 60%, Steam, Water
Flow Characteristic
Modified Linear
Operating Conditions
20 F To 281 F (-7 C To 138 C)
