283-03204

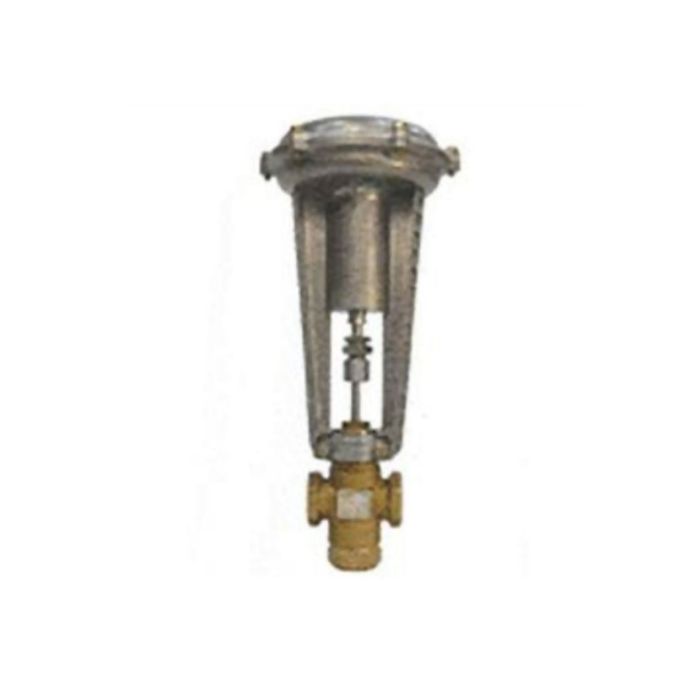

Globe Valve Assembly, 3 Way, 1-1/4 in.

done_outline8888 in stock

addShow Locations removeHide Locations

NPT, 16 Cv, Brass Trim, Pneumatic Valve Actuator, 8 in., 3/4 in. Stroke, 5 psi Span, 1/8 in. NPT Air Connection, Includes Factory Mounted Positioner.

Features

ANSI Class 250

Technical Details

Service

Water, Glycol Solutions To 50%

Flow Characteristic

Equal Percentage (NC Port) And Linear (NO Port)

Operating Conditions

20 F To 250 F (-7 C To 120 C)

Close-Off Pressure

148 psi

Mounting Type

NEMA 1
