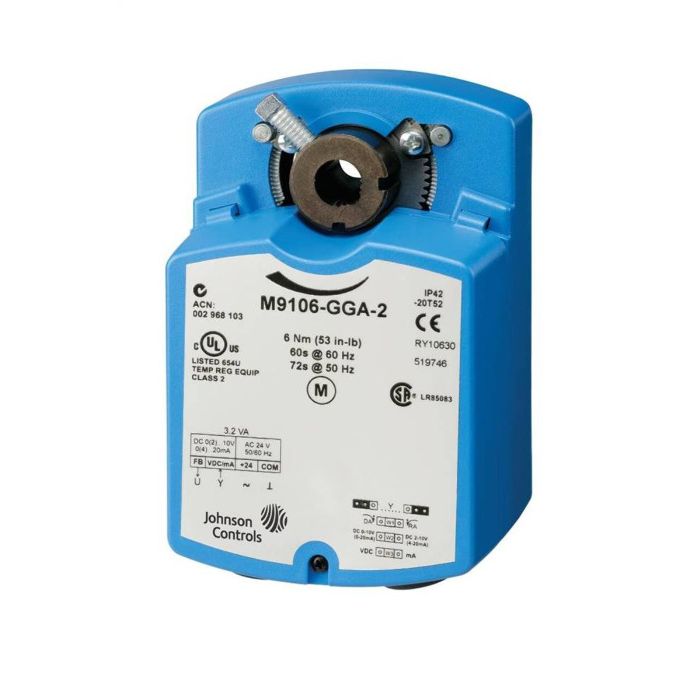

M9106-GGA-2
Replaced by: M9108-GGA-2
by
70 IN-LB/8NM, 24 VAC/VDC PROP 0-10 VDC/0-20 MA, 0-10 VDC FEEDBACK
Features
Simple Direct Coupling Reduces Installation And Commissioning Time And Improves Reliability By Eliminating Damper Linkages. Single Screw Coupling Provides Three-Point Shaft Gripping
Designed For Zone Damper And Ball Valve Actuator Applications
Small, Compact Design
Long Life Brushless Synchronous Drive Motor Technology – Provides Constant Running Time Independent Of Load
Whisper Quiet 35 dBA Noise Rating
Magnetic Clutch – Provides Over torque protection over the entire range of rotation
Manual Gear Release Simplifies Setup And Field Adjustments
Technical Details
Power Consumption
3.2 VA
Operating Conditions
-4 F To 125 F (-20 C To 52 C)
Electrical Connection
1/4 in. Spade Terminals
Housing
NEMA 2, IP32
Voltage:
24 VAC
