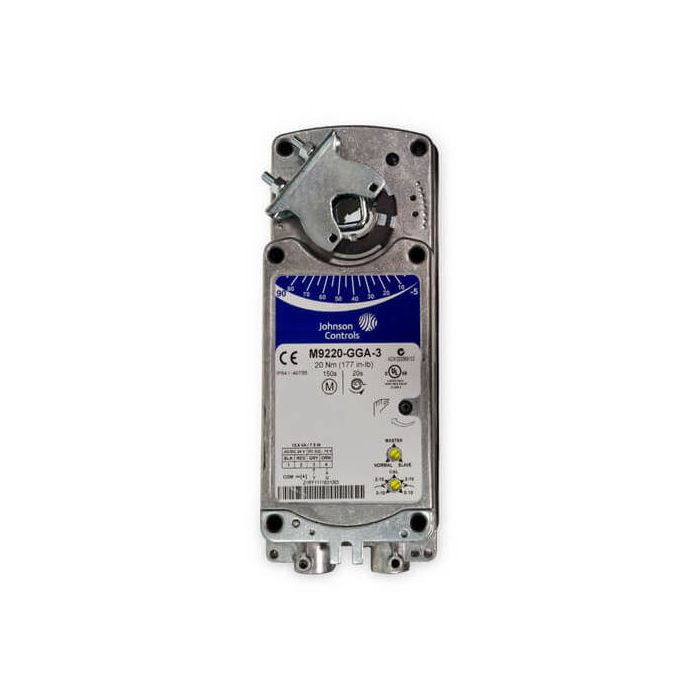

M9220-GGA-3
Direct Coupled, 177 lb-in. Spring Return
by
done_outline8888 in stock
addShow Locations
removeHide Locations
24 VAC At 50/60 Hz, 25 VA, Proportional Control Type.
Features
Reversible Mounting Design, Simplifies Installation And Enables The Actuator To Spring Return In Either Direction
Electronic Stall Detection Throughout Entire Rotation Range, Extends The Life Of The Actuator By Deactivating The Actuator Motor When An Overload Condition Is Detected
Removable Coupler, Adapts To A Shorter Damper Shaft
Easy-To-Use Locking Manual Override With Auto Release And Crank Storage, Allows For Manual Positioning Of The Actuator Hub
Technical Details
Power Consumption
15.5 VA Running, 7.7 VA Holding Position
Operating Conditions
-40 F To 131 F (-40 C To 55 C)
Electrical Connection
48 in. 18 AWG Wire Leads With Integral Connectors For 3/8 in. Flexible Metal Conduit
Housing
NEMA 2, IP54
Fail Safe Mode:
Spring Return
