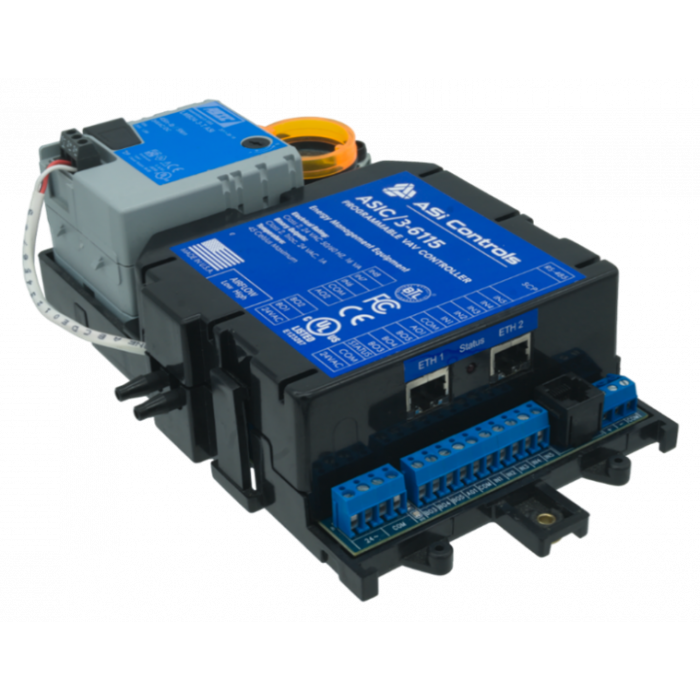

The ASIC/3-6115-ETH Dual-Ethernet Airflow Controller from ASI Controls is a powerful, fully programmable VAV controller designed for modern building automation networks. Combining advanced airflow control with an integrated dual-port Ethernet switch, the 6115-ETH simplifies network design while delivering precise, scalable HVAC control for commercial applications.
Engineered for BACnet/IP and legacy RS-485 networks, this controller offers the flexibility to integrate into both new construction and retrofit projects. With object-based programming, multiple I/O options, and compact VAV-ready construction, the 6115-ETH is a versatile solution for today’s intelligent buildings.
Built for Modern BAS Networks
One of the defining features of the ASIC/3-6115-ETH is its integrated dual-port managed Ethernet switch. This allows controllers to be daisy-chained directly using standard CAT5/6 cabling, eliminating the need for external Ethernet switches at the device level. The result is a cleaner network layout, reduced hardware costs, and faster installation.
The controller supports both BACnet/IP over Ethernet and RS-485 (BACnet MS/TP or ASI legacy protocol), making it ideal for mixed-network environments. This dual-communication flexibility allows the 6115-ETH to seamlessly bridge older systems with modern IP-based architectures.
Click here to download the Datasheet
Advanced Object-Based Control
The ASIC/3 platform is known for its powerful object-oriented programming structure, and the 6115-ETH fully leverages this capability. It supports a broad library of control objects, including:
- Scheduling and occupancy logic
- PID control loops
- Alarm management and trend logging
- Runtime accumulation
- Optimum start routines
- Demand management and load shedding
This programming flexibility allows system designers to create custom airflow strategies tailored to the needs of each zone, space, or building type, far beyond basic VAV control.
Flexible I/O for VAV and Terminal Unit Applications
The 6115-ETH is equipped with a versatile I/O package to support a wide range of HVAC configurations:
- 8 Universal Inputs (0–10 Vdc analog or binary)
- 5 Binary Outputs (TRIAC)
- 2 Analog Outputs (0–10 Vdc)
- Up to 2 Airflow Sensors
This I/O configuration allows the controller to easily interface with airflow sensors, temperature sensors, actuators, dampers, and other field devices commonly found in VAV and terminal unit systems.
The controller supports pressure-independent, pressure-dependent, and dual-duct VAV configurations, making it suitable for a broad range of airflow control strategies.
Compact, Field-Ready Design
Designed specifically for terminal unit mounting, the ASIC/3-6115-ETH features a compact, rugged enclosure that fits easily within VAV boxes or mechanical enclosures. Its lightweight, low-profile design simplifies installation in tight spaces while maintaining full-service accessibility.
The controller operates on 24 Vac Class 2 power and includes onboard USB support for firmware upgrades, allowing technicians to quickly update or service devices in the field without removing them from the system.
Integration with Industry-Standard Front Ends
The ASIC/3-6115-ETH is fully compatible with a wide range of building automation platforms, including Niagara-based systems and ASI software tools. This ensures straightforward integration into new BAS projects as well as existing supervisory platforms.
By supporting open communication protocols and standardized IP networking, the 6115-ETH enables:
- Centralized monitoring and control
- Remote diagnostics and troubleshooting
- Long-term scalability without major infrastructure changes
Typical Applications
The ASIC/3-6115-ETH is ideally suited for:
- Commercial office buildings with VAV zoning
- Educational facilities and campus environments
- Healthcare and laboratory spaces requiring precise airflow control
- Retrofit projects transitioning from RS-485 to IP-based networks
- Multi-tenant buildings requiring scalable terminal unit control
Its combination of compact hardware, advanced programming, and dual-network communication makes it a reliable choice across a wide range of commercial HVAC projects.
Installation & Commissioning Support
The standard installation process is straightforward and well-documented in the official installation guide. Field wiring is completed via clearly labeled screw terminals for power, I/O, and RS-485, while wall sensors connect using RJ-45 cabling for fast deployment. Proper grounding, cable separation, and airflow tubing practices ensure long-term reliability and performance.
Click here to download the Installation Manual
A Smart Choice for Scalable HVAC Control
The ASIC/3-6115-ETH Dual-Ethernet Airflow Controller delivers a rare combination of advanced networking, deep programming flexibility, and compact VAV-ready design. Its integrated Ethernet switching simplifies installation, while its open communication protocols ensure seamless integration with modern building automation systems.
For engineers, integrators, and facility operators seeking a reliable, future-ready solution for airflow control, the 6115-ETH offers both performance and long-term scalability in a single controller platform.
Contact your sales representative to learn more!
