P6500S-443+GRX24-PI
EPIV Assembly, 2 Way, 5 in. NPT
by
done_outline8888 in stock
addShow Locations
removeHide Locations

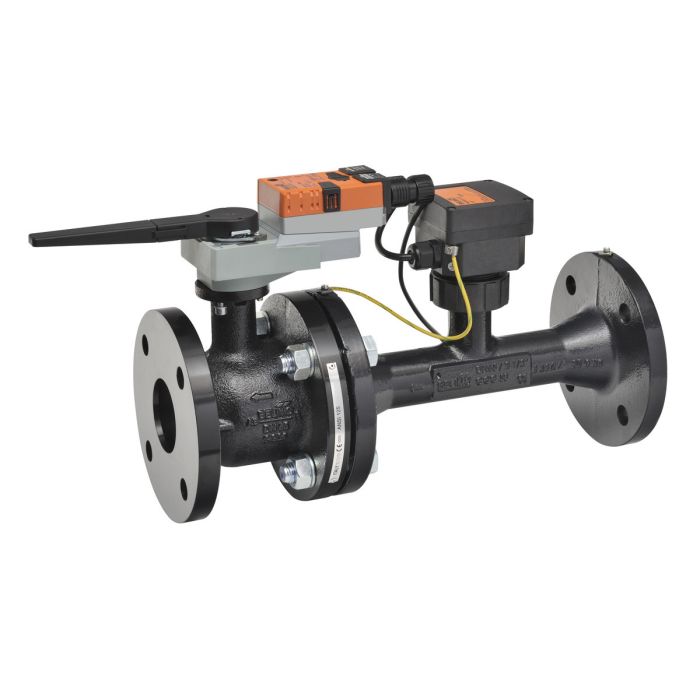

Electronic Pressure Independent Valve, Cast Iron Body, Stainless Steel Ball And Stem, 443 gpm, Direct Coupled Actuator, 360 in-lb, Modulating, Non-Spring Return, 24 VAC, Multi-Function Technology.
Features
Provides Constant Flow Regardless Of Pressure Variations In The System
Technical Details
Service
Chilled Or Hot Water, Up To 60% Glycol Max
Flow Characteristic
Equal Percentage Or Linear
Operating Conditions
14 F To 250 F (-10 C To 120 C)
Close-Off Pressure
100 psi
Power Consumption
9.5 W Running
Operating Conditions
14 F To 122 F (-10 C To 50 C)
Electrical Connection
3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
Housing
NEMA 2, IP54, UL Enclosure Type 2
