EPG109-AM

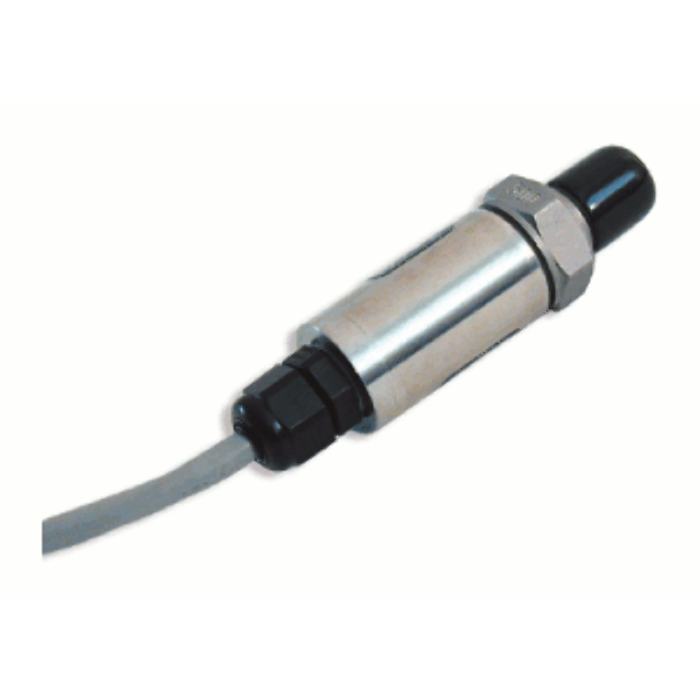

Pressure Gauge, 500psig, 4-20mA, 316SS
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Pressure Gauge, 500psig, 4-20mA, 316SS
Features
Pump inlet/outlet and compressors
A wide operating temperature range of -40° to 85°C (-40° to 185°F) for operation versatility
Hydraulic/pneumatic systems
Energy & water management
Refrigeration equipment, fluids
Gas pressure measurement
High accuracy
Rugged stainless steel construction
No silicon oil, no internal O-rings, no welds... fewer parts to fail
Sturdy construction...suitable for high shock and vibration applications
Technical Details
Output Deluxe:
0-5/0-10VDC (3 wire) or 4-20mA (2-wire)
Output Economy:
1-5VDC (3 wire) or 4-20mA (2-wire)
Vibration Deluxe:
20G peak, 20 to 2400Hz
Vibration Economy:
10G peak, 20 to 2000Hz
EMI/RFI Protection Deluxe:
Yes
EMI/RFI Protection Economy:
No
Rating Deluxe:
IP-66
Rating Economy:
IP-65
