VG7241NT+3008B

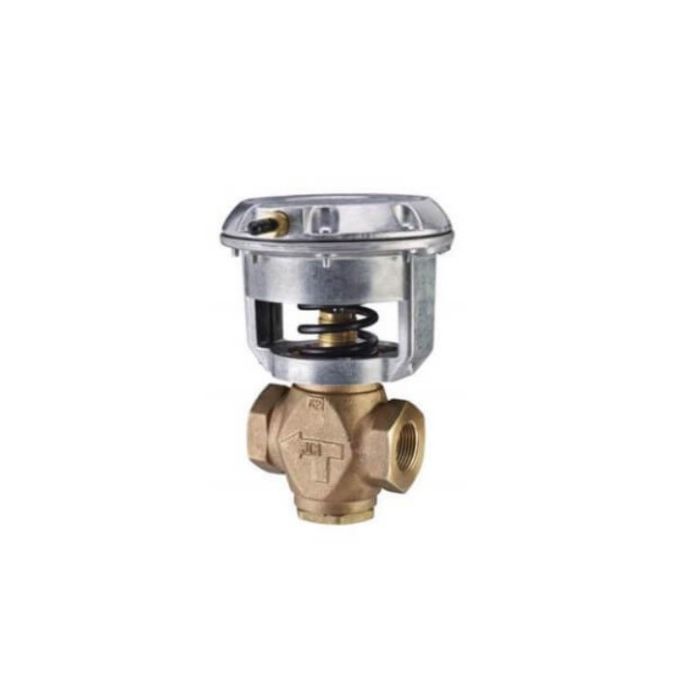

Globe Valve Assembly, 2 Way 1 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
NPT, 11.6 Cv, Bronze Body, Stainless Steel Stem, And Brass Seat, Pneumatic Actuator, Spring Return, 1/8 in. NPT Barbed Fitting For 1/4 in. Or 5/32 in. O.D. Polytubing, 3 To 6 psig.
Features
Rugged Actuator Die-Cast Enclosure, Enclosed Spring
Factory Or Field Assembly
Technical Details
Service
Hot Water, Chilled Water, 50/50 Glycol Solutions, And Steam For HVAC Systems
Operating Conditions
35 F To 248 F (2 C To 120 C)
Flow Characteristic
Equal Percentage
Operating Conditions (Actuator)
-20 F To 150 F (-29 C To 66 C)
Housing
Die Cast Aluminum Diaphragm, Synthetic Rubber
