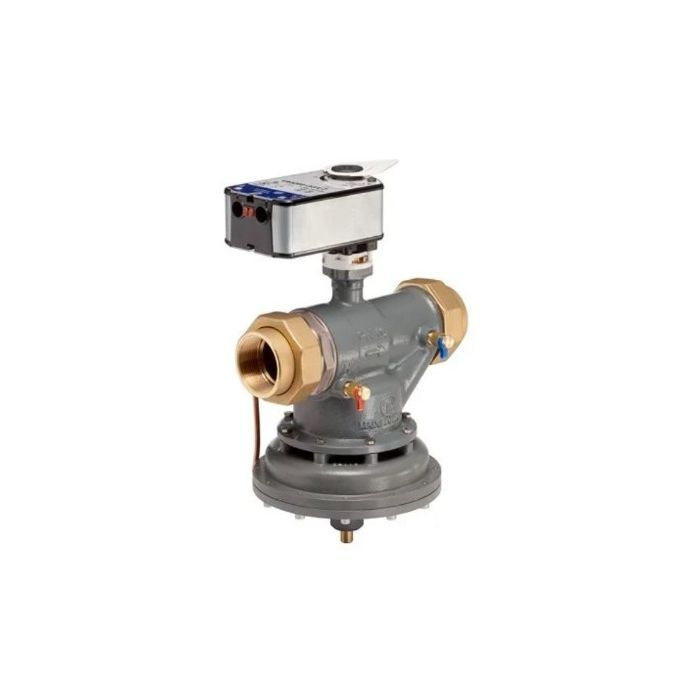

VP140EBB+928GGA
PICV Assembly, 1-1/2 in. 26.4 GPM
by
done_outline8888 in stock
addShow Locations
removeHide Locations
NPT, Pressure Independent Control Valve, Chrome Plated Brass Ball, Ductile Iron Body And Brass Stem, Direct Coupled Actuator, 70 lb-in. Spring Return, 24 VAC/DC, 0 To 10 VDC, Proportional.
Features
Availability Of Both Axial And Rotary Valve Styles
No Cv Calculation
Automatic System Balancing
Combined Control And Balancing Valve
Wide Range Of Operating Differential Pressure Rating
ANSI Class IV Leakage And +/-5% Flow Characteristic
Technical Details
Service
Water Or Water-Glycol Mixture, Quality To VDI 2035
Operating Conditions
14 F To 248 F (-10 C To 120 C)
Close-Off Pressure
200 psi
Power Consumption
8 VA
Actuator Operating Conditions
-40 F To 140 F (-40 C To 60 C)
Electrical Connection
120 in. 19 AWG Plenum Cables With 3/8 in. Integral FMC Connectors
Housing
NEMA 2, IP54
