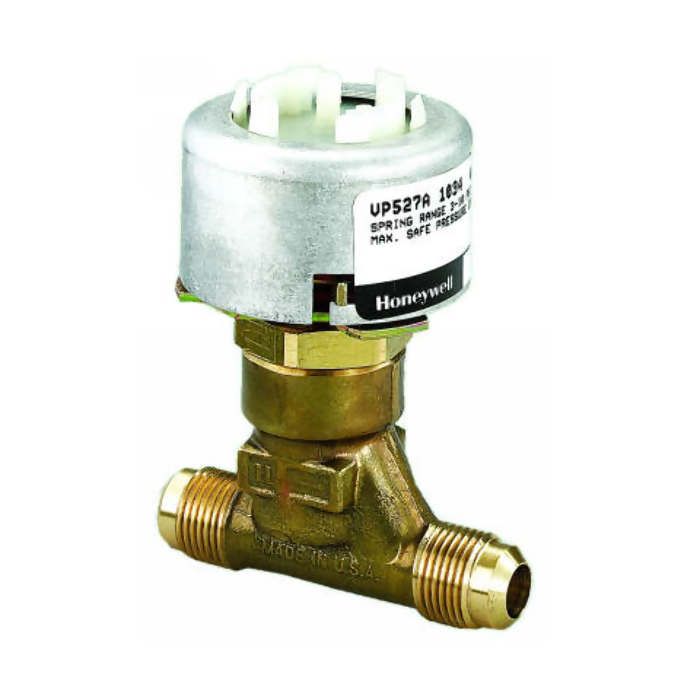

VP527A1034/U
Pneumatic Water Valve
by
done_outline8888 in stock
addShow Locations
removeHide Locations
2 Way, 1/2 in. O.D. 3/8 in. Nominal, 1.6 Cv, Proportional Normally Open, Flare, 3 psi To 10 psi.
Features
Small Size Permits Installation Where Space Is Limited
Forged Brass, Straight-Through Body With End Connections Threaded For 45 Degrees SAE Flare Fitting Nuts
Spring-Loaded, Self-Adjusting Buna-N V Ring Packing Is Replaceable Without Shutting System Down
High Temperature Rolling Diaphragm Actuator (Aluminum Cover) And High Temperature Plastic Diaphragm Retaining Cup With Integral Air Connection For 1/4 in. O.D. Plastic Tubing
Integral Seat And Brass Plug With Removable Composition Disc Provides Equal Percentage Flow
Stainless Steel Stem, 3/16 in. Diameter
Technical Details
Service
Hot And/ Or Cold Water
Operating Conditions
35 F To 250 F (2 C To 121 C)
Maximum Diaphragm Pressure
30 psi
