VS-7253-804-4-07

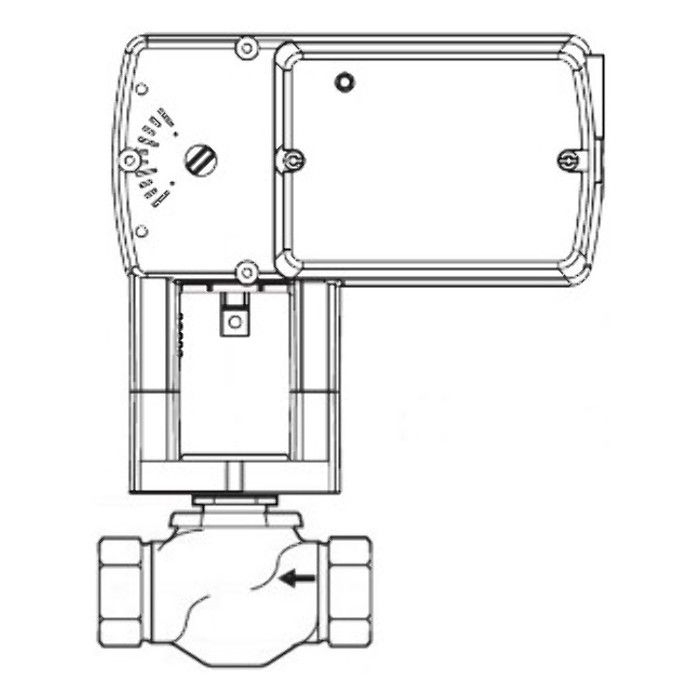

Globe Valve Assembly, 2 Way, 1 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
NPT, 10 Cv, Stainless Steel Trim, Direct Coupled Actuator, 105 ft.-lb., Spring Return, 24 VAC, 6.6 VA, Modulating Control, 2 To 10 VDC Control Signal.
Features
Control Function Direct/Reverse Action Is Jumper Selectable
Overload Protection Throughout Stroke
Automatically Sets Input Span To Match Valve Travel
Compact Size To Allow Installation In Limited Space
Manual Override To Allow Positioning Of Valve And Preload
Direct Mount To Valves Without Separate Linkage
5 Year Warranty
Technical Details
Flow Characteristic
Modified Linear
Operating Conditions
20 F To 340 F (-7 C To 171 C)
Stem Action
Up Open
Power Consumption
24 VAC, 6.6
Operating Conditions
-22 F To 140 F (-30 C To 60 C)
Electrical Connections
3 ft. Plenum Cable
Housing
NEMA 2, IP54
