VS-7263-537-4-11

Globe Valve Assembly, 2 Way, 2 in.

done_outline8888 in stock

addShow Locations removeHide Locations

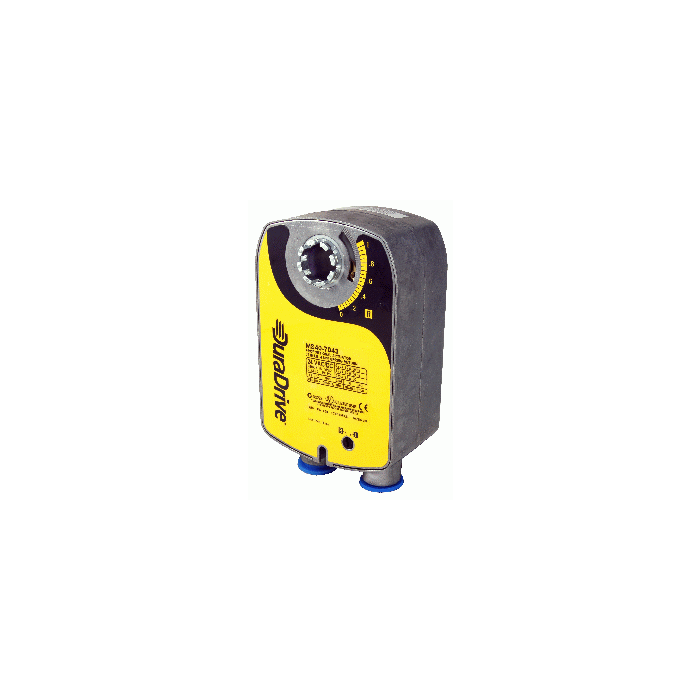

NPT, 40 Cv, Stainless Steel Trim, Direct Coupled Actuator, 35 in-lb., Spring Return, 24 VAC/DC, 5.6 VA, Modulating Control, 2 To 10 VDC Feedback.

Features

Direct Mount To Round Or Square Damper Shaft

Overload Protection Throughout Rotation

True Mechanical Clockwise Or Counterclockwise Spring Return Operation For Reliable, Positive Close-Off In Airtight Applications

Visual Position Indicator

Direct Acting Or Reverse Acting Control Mode Available On Proportional Models

Rotation Limiting Available

Rugged Die-Cast Housing For NEMA 2/IP54 Rating

Technical Details

Service

Glycol 25 To 60%, Steam, Water

Flow Characteristic

Modified Linear

Operating Conditions

20 F To 281 F (-7 C To 138 C)

Stem Action

Up Open

Power Consumption

24 VAC/DC, 5.6 VA

Operating Conditions

-22 F To 140 F (-30 C To 60 C)

Electrical Connections

3 ft. Plenum Rated Cable With 1/2 in. Conduit Connector

Housing

NEMA 2, IP54

Auxiliary Switch

1 x SPDT
