VS-8213-516-5-16

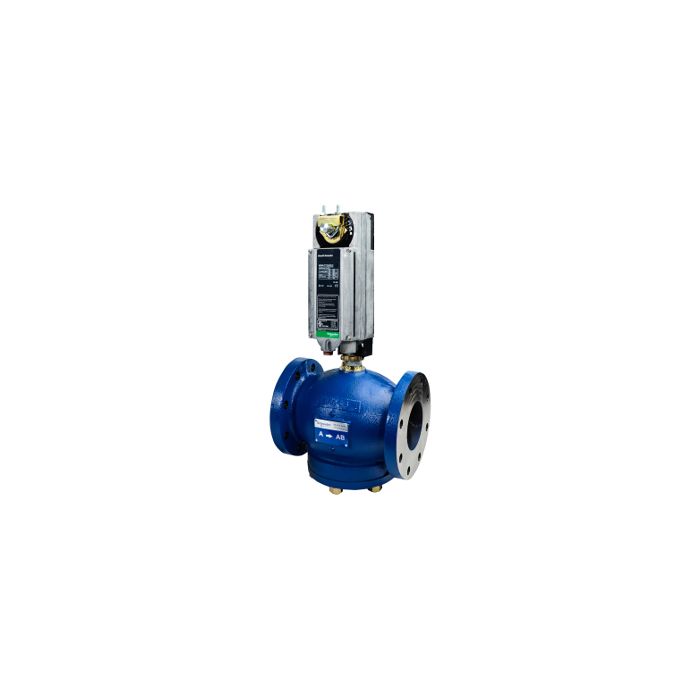

Globe Valve Assembly, 2 Way, 6 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Flanged Connection, 370 Cv, Cast Iron Body, Brass Trim, Direct Coupled Actuator, 300 in-lb., Non-Spring Return, 24 VAC/DC, 5.6 VA, Modulating Control, 2 To 10 VDC Feedback.
Features
Balanced Plug Technology
Oil Immersed Gear Train Provides Continuous Lubrication
Excellent Close-Off Capability Up To 125 psi
Meets ANSI IV Seat Leakage Specifications
Self-Adjusting Spring-Loaded TFE/EPDM Packing
Custom Automatic Current Sensing Motor Control Provides Extended Reliability And Repeatable Timing
Direct Coupled To The Damper Shaft With Dual Industrial Hardened Universal Mounting Clamps
Clockwise Or Counterclockwise Rotation Is Determined By Actuator Mounting Position
Accurate 92 Travel Digitally Controlled
Integral Position Indication Scale
Technical Details
Service
Glycol 25 To 50%, Steam, Water
Flow Characteristic
Modified Equal Percentage
Operating Conditions
20 F To 281 F (-7 C To 138 C)
Stem Action
Up Open
Power Consumption
24 VAC/DC, 5.6 VA
Operating Conditions
-25 F To 140 F (-32 C To 60 C)
Electrical Connections
3 ft. Appliance Cable, 1/2 in. Conduit Connectors
Housing
NEMA 1 Or NEMA 4
