VT2211G13U020

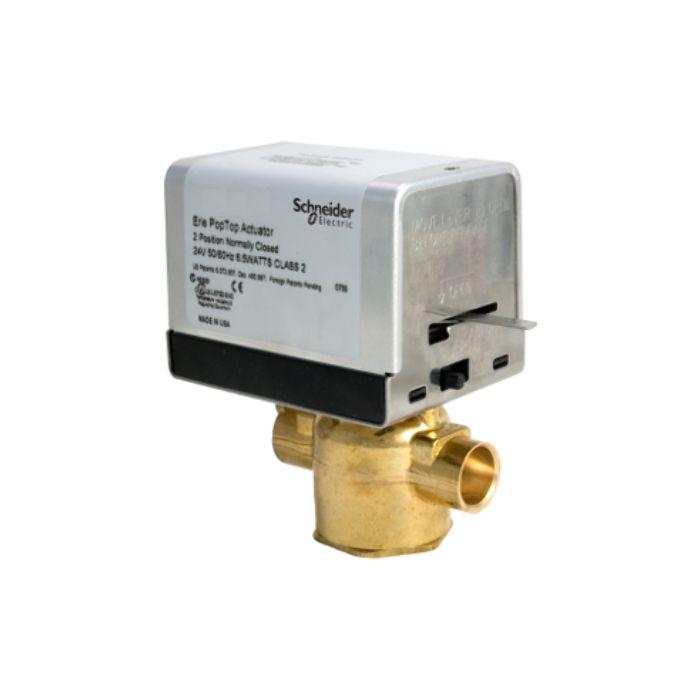

Zone Valve Assembly, 2 Way, 1/2 in.

done_outline8888 in stock

addShow Locations removeHide Locations

Sweat, 1.0 Cv, Brass Trim, Erie PopTop Actuator, Spring Return Normally Closed, 230 VAC, 2 Position, On/Off Control Signal, General Close-Off.

Features

One-Handed Engagement Or Removal Of The Motorized Actuator To The Valve Body

Valve Actuator Can Be Easily Attached After The Valve Body Has Been Installed Into The System

Mounts Quickly And Easily Without The Need Of Linkages Or Calibration

UL Listed Actuator

Technical Details

Service

Glycol 25 To 50%, Steam And Water

Flow Characteristic

Quick Open

Operating Conditions

32 F To 200 F (0 C To 93 C)

Power Consumption

6.5 Watts, 7.5 VA

Operating Conditions

32 F To 200 F (Fluid) At 104 F

Electrical Connection

18 in. Standard Wire Leads

Housing

NEMA 1, IP10

Auxiliary Switch

1 x SPDT
