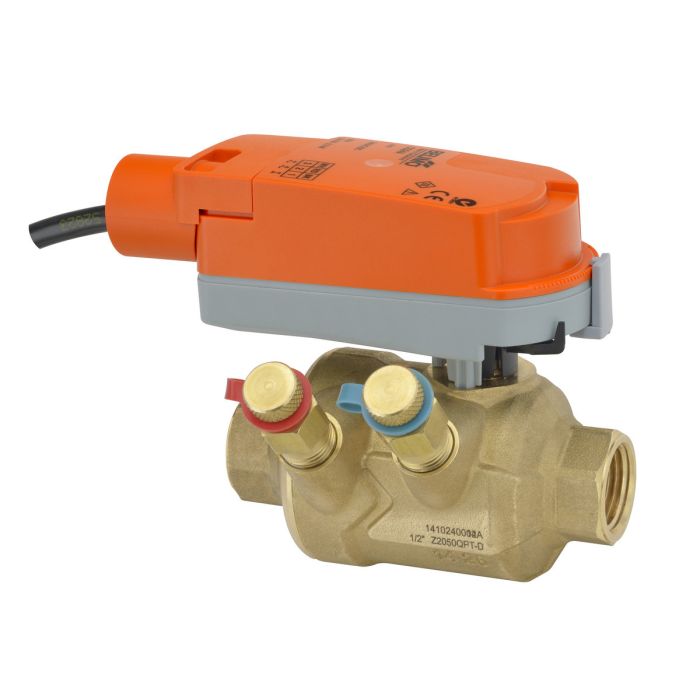

Z2050QPT-B+CQB24-SR-L
Zonetight Valve Assembly, 2 Way, 1/2 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Pressure Independent Quick Connect Valve, NPT, 0.9 GPM, Forged Brass Body, Stainless Steel Ball And Stem, Direct Coupled Actuator, 12 in-lb, Modulating, Non-Spring Return, 24 VAC, 2 VDC (Open) To 10 VDC (Close) Or 4 To 20 mA Control Signal.
Features
Suited For Large Commercial Buildings Where Higher Close-Off And Dynamic Balancing Is Required
Valve Fits In Space Restricted Areas And Can Be Assembles Without The Use Of Tools
Technical Details
Service
Chilled, Hot Water, Up To 60% Glycol
Flow Characteristic
Equal Percentage
Operating Conditions
36 F To 212 F (2 C To 100 C)
Close-Off Pressure
200 psi
Power Consumption
0.3 W Running, 0.15 W Holding
Operating Conditions
35 F To 104 F (1.7 C To 40 C)
Electrical Connection
3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
Housing
NEMA 2, IP40
