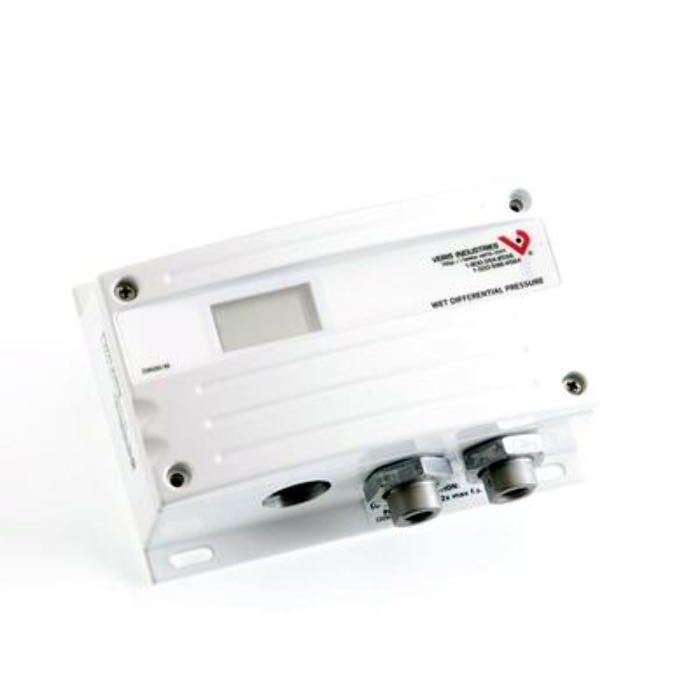

PWLN05S
Wet Differential Pressure Transducer
by
done_outline8888 in stock
addShow Locations removeHide Locations
12 To 30 VDC Or 24 VAC Input, 4 To 20 mA, 0 To 5 VDC Or 0 To 10 VDC Output, 0 To 250 psig Measurement Range, Includes LCD Display And NIST Certification.

Features

The Jumper-Selectable Output Switch For Normal (4 To 20 mA) Or Reverse (20 To 4 mA) Operation Provides Application Flexibility
Dual-Color Led: Green = Normal, Green Blinking = Low Greater Than High, Red = Over Range, Red Blinking = Overpressure Status Indication
Media Compatible With 17 To 4 Ph Stainless Steel
Maximum 2X Full Scale Range Proof Pressure
Maximum 5x full scale range burst pressure
Rugged, Die-Cast Enclosure Provides NEMA 4 Sealing
Switch-Selectable Pressure Ranges, Fewer Models To Order And Stock
Pushbutton And Remote Zero Adjustment, Maintain Accuracy And Reduce Callbacks With Automatic Zero Calibration
Jumper-Controlled Electronic Surge Dampening For High Stability
NIST certified
Electronic, 5 S Averaging Surge Damping
Overrides Output To Full Scale (20 Ma, 5 V, 10 V) Test Mode
Pushbutton Auto-Zero And Digital Input (2-Position Terminal Block) Zero Adjust
