P2050SU-055+LRX24-EP2-MOD

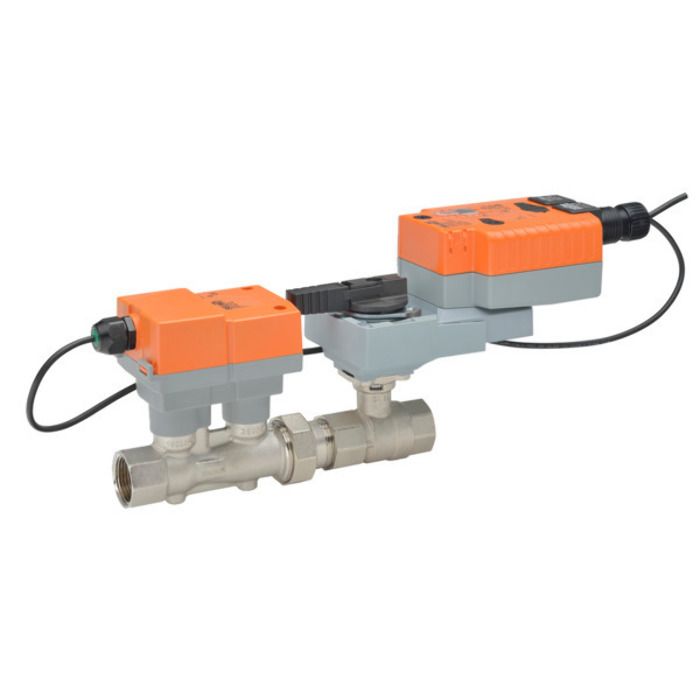

EPIV Assembly, 2 Way, 1/2 in. NPT
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Electronic Pressure Independent Valve, Nickel Plated Brass Body, Stainless Steel Ball And EPDM Stem, 5.5 GPM, Direct Coupled Actuator, 45 in-lb, 24 VAC/DC, Communication Via BACnet MS/TP, Modbus RTU, Belimo-MP-Bus Or Conventional Control
Features
Control Communicative
Conversion Of Active Sensor Signals And Switching Contacts
Technical Details
Service
Chilled Or Hot Water, Up To 60% Glycol Max (Open Loop/Stem Not Allowed)
Operating Conditions
14 F To 250 F (-10 C To 120 C)
Close-Off Pressure
200 psi
Power Consumption
3.5 W Running
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Housing
NEMA 2, IP54, UL Enclosure Type 2
