R7910A1001/U

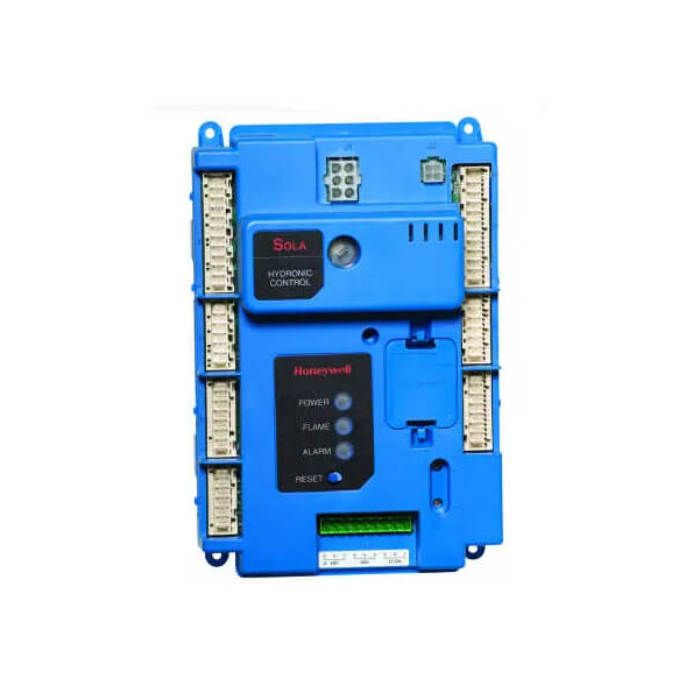

SOLA Hydronic Boiler Controller
by
done_outline8888 in stock
addShow Locations
removeHide Locations
24 VAC Operating And Load Voltage, 0 To 10 VDC, 4 To 20 mA, PWM Modulation Output, FR/UV Flame Sensor Type, NEMA 1 IP40.
Features
Provides Heat Control, Flame Supervision, Circulation Pump Control, Fan Control, Boiler Control, And Electric Ignition Function, It Will Also Provide Boiler Status And Error Reporting
PID Load Control
Digital Inputs, Digital Outputs, Analog Outputs
Frost Protection, Slow Start, Anti-Condensate, Boiler Delta-T, Stack Limit, Boiler Limit, DHW Limit, Outlet T-Rise Limit
Internal Or External Spark Generator
Analog NTC Sensor Inputs
Three Status LEDs
UV Or Flame Rod Flame Sensing
Fifteen Item Alert Code Status Including Equipment Status At Time Of Internal Alerts
Fifteen Item Fault Code History Including Equipment Status At Time Of Lockout
Algorithm Prioritization
Technical Details
Application
Hydronic
Comments
Includes Programmable Features
Approvals
UL, cUL: Component Recognized: File Number MP268
