As building automation systems continue to evolve, facility managers and system integrators need controllers that offer more than just reliable control. Today's projects require flexible integration, cybersecurity protections, edge computing capabilities, and the scalability to support increasingly connected buildings.
The Honeywell Optimizer Essential Controller delivers all of this in a compact, freely programmable platform built on the Niagara Framework®. Designed for HVAC plant applications and advanced building automation projects, the Optimizer Essential combines powerful processing, flexible I/O, extensive protocol support, and modern cybersecurity features into a single controller.
Built for Modern Building Automation

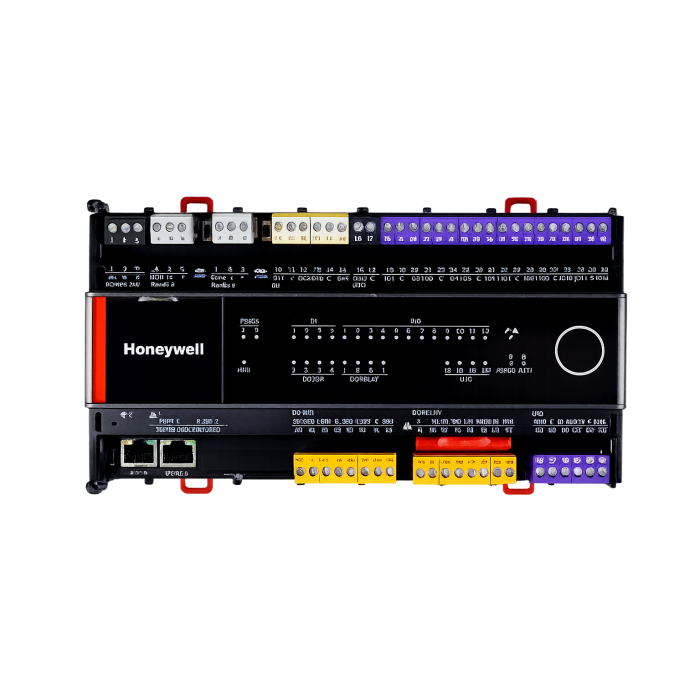

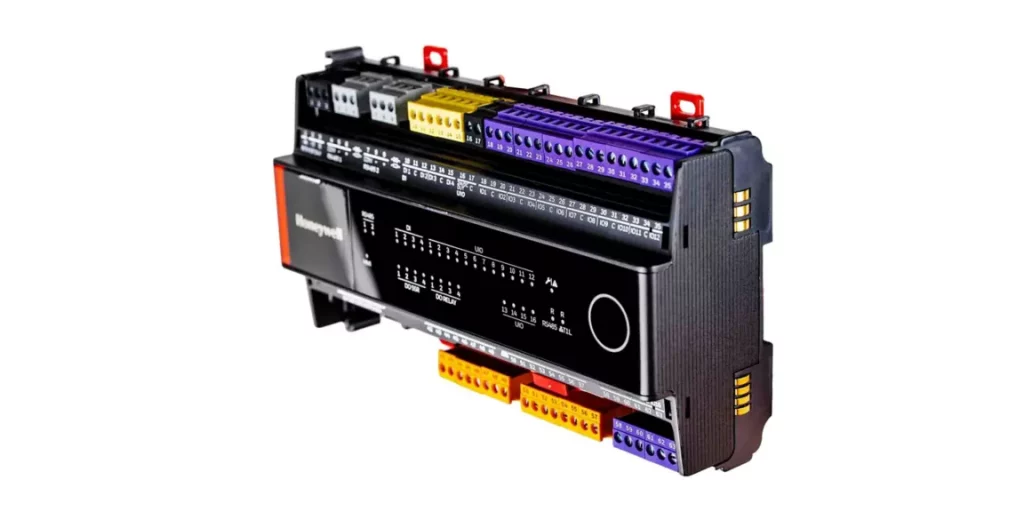

The Honeywell Optimizer Essential Controller is a next-generation plant controller powered by a 64-bit dual-core NXP i.MX 8M Mini processor operating at 1.2 GHz. Running on a Linux-based operating system with containerized software architecture, the controller delivers the performance needed for demanding HVAC and energy management applications while supporting future expansion and innovation.
At its core, the controller is a native BACnet Building Controller (B-BC) and can be licensed with either Niagara Edge or full Niagara functionality depending on project requirements.
Key hardware specifications include:
- 64-bit dual-core Arm® Cortex®-A53 processor
- 2 GB LPDDR4 memory
- 8 GB eMMC storage
- 512 KB FRAM memory for data retention
- Native Niagara Framework® support
- BACnet Building Controller (B-BC) certification
- Linux-based operating system
- DIN rail mounting design
Flexible 28-Point I/O Architecture
The Optimizer Essential Controller provides 28 onboard control points designed to support a wide range of HVAC and plant applications without requiring excessive additional hardware.
Onboard I/O Includes:
- 4 Solid State Relay Outputs
- 16 Universal I/O Channels
- 4 Digital Inputs
- 4 Relay Outputs
This flexible I/O mix allows contractors and integrators to support complex control sequences while reducing panel space and installation complexity.
Extensive Protocol Support
One of the controller's greatest strengths is its ability to connect with multiple building systems and devices through a variety of communication protocols.
Serial Connectivity
The controller includes three RS-485 communication ports supporting:
- BACnet MS/TP
- Modbus RTU
- M-Bus
- Honeywell Panel Bus
Ethernet Connectivity

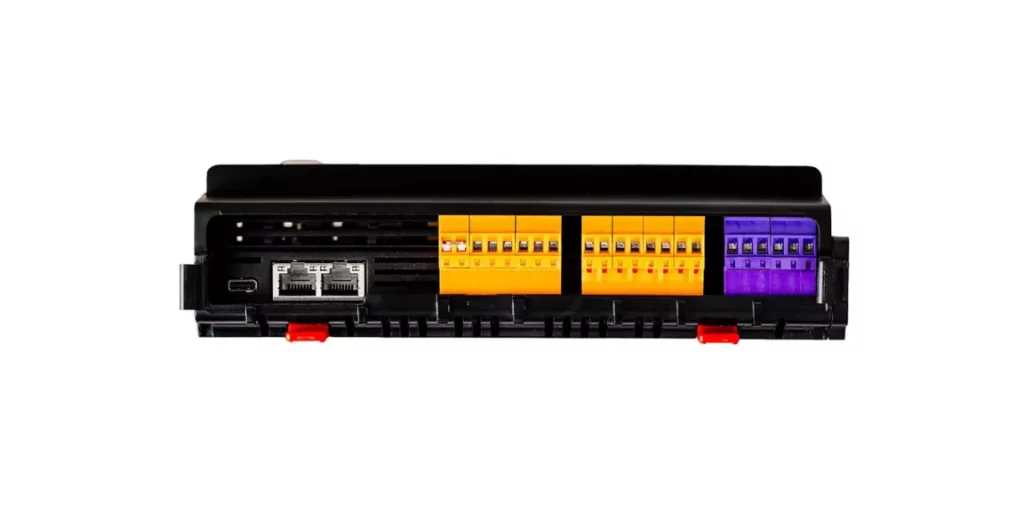

Two onboard Ethernet ports support:
- Niagara communications
- BACnet/IP
- Modbus TCP/IP
- C-Bus
The Ethernet ports can operate in either:
- Switched (Daisy Chain) Mode
- Isolated Port Mode
Additionally, the built-in Rapid Spanning Tree Protocol (RSTP) functionality helps create fault-tolerant network architectures while preventing network loops.
Additional Connectivity
The controller also includes:
- RJ11 HMI connection
- USB Type-C programming interface
- USB Type-C LON communication support
- Touch flake expansion connections for I/O modules
Niagara-Powered Flexibility
By leveraging the Niagara Framework®, the Optimizer Essential Controller provides a powerful platform for integrating devices, systems, and applications into a unified building automation environment.
Depending on licensing, users can deploy:
Niagara Edge License
Includes:
- M-Bus support
- 100 points
- 5 devices
- 3 drivers
- BACnet MS/TP support
- Modbus RTU support
Full Niagara License
Provides expanded functionality with support for larger integration projects, increased point capacity, and advanced supervisory capabilities.
This flexibility allows organizations to right-size their deployment while maintaining a path for future growth.
Designed for Retrofit Projects
Many facilities face the challenge of modernizing aging control systems while minimizing disruption and installation costs.
The Optimizer Essential Controller was specifically designed to simplify migration projects through its form-fit architecture and retrofit-friendly design.
Benefits include:
- Easy migration from Honeywell CIPer™ 50 controllers
- Functional retrofit path for CIPer™ 30 non-VAV applications
- Compatibility with Honeywell Engineering Starter Kit (ESK)
- Reduced panel redesign requirements
- Faster commissioning during upgrades
For contractors and facility owners, this can significantly reduce labor costs and project timelines.
Advanced Cybersecurity Built In
As connected building systems become increasingly common, cybersecurity has become a critical consideration for every automation project.
The Optimizer Essential Controller incorporates multiple security layers designed to help protect building operations and sensitive system data.
Key security features include:
- Secure boot technology
- Authenticated and encrypted communications
- Encryption for stored data
- Synchronized account management
- Network key authentication
- TLS-secured communications
- Support for HTTPS and secure platform connections
- Role-based user access controls
- Support for digital certificates and PKI infrastructure
The controller also supports 802.1X network authentication, providing IT-standard authentication methods for secure network access.
Edge-Ready for Future Innovation
The Optimizer Essential Controller was designed with future technology adoption in mind.
The controller includes a Neural Network Accelerator within its processor architecture, creating opportunities for future edge-based AI and machine learning applications.
As predictive maintenance, advanced analytics, and intelligent building optimization continue to evolve, facilities can leverage a controller platform designed to support next-generation technologies.
Reliable Operation and Data Protection
The controller incorporates Ferroelectric RAM (FRAM) technology that stores live controller data and preserves critical values during power interruptions.
Additional reliability features include:
- Real-time clock retention
- Multi-color diagnostic LEDs
- Built-in troubleshooting tools
- Advanced IP and MS/TP diagnostics
- Controller service indicators
- Robust environmental design
These capabilities help reduce downtime and simplify maintenance activities.
Recommended Applications
Honeywell recommends the Optimizer Essential Controller for a wide range of commercial HVAC and plant control applications, including:
| Central Plant Systems | Airside Applications | Infrastructure Applications |
| Chiller Plants | Air Handling Units (AHUs) | Pump Stations |
| Boiler Plants | Energy Recovery Units (ERVs) | Water Distribution Systems |
| Heating Systems | Rooftop Units (RTUs) | Ventilation Systems |
| Cooling Towers | Outdoor Air Units (OAUs) | Exhaust Fan Control |
| Condenser Water Systems | Heat Pump Systems | Custom HVAC Equipment |
The platform supports up to 555 control points, making it suitable for everything from standalone equipment control to larger integrated building automation deployments.
